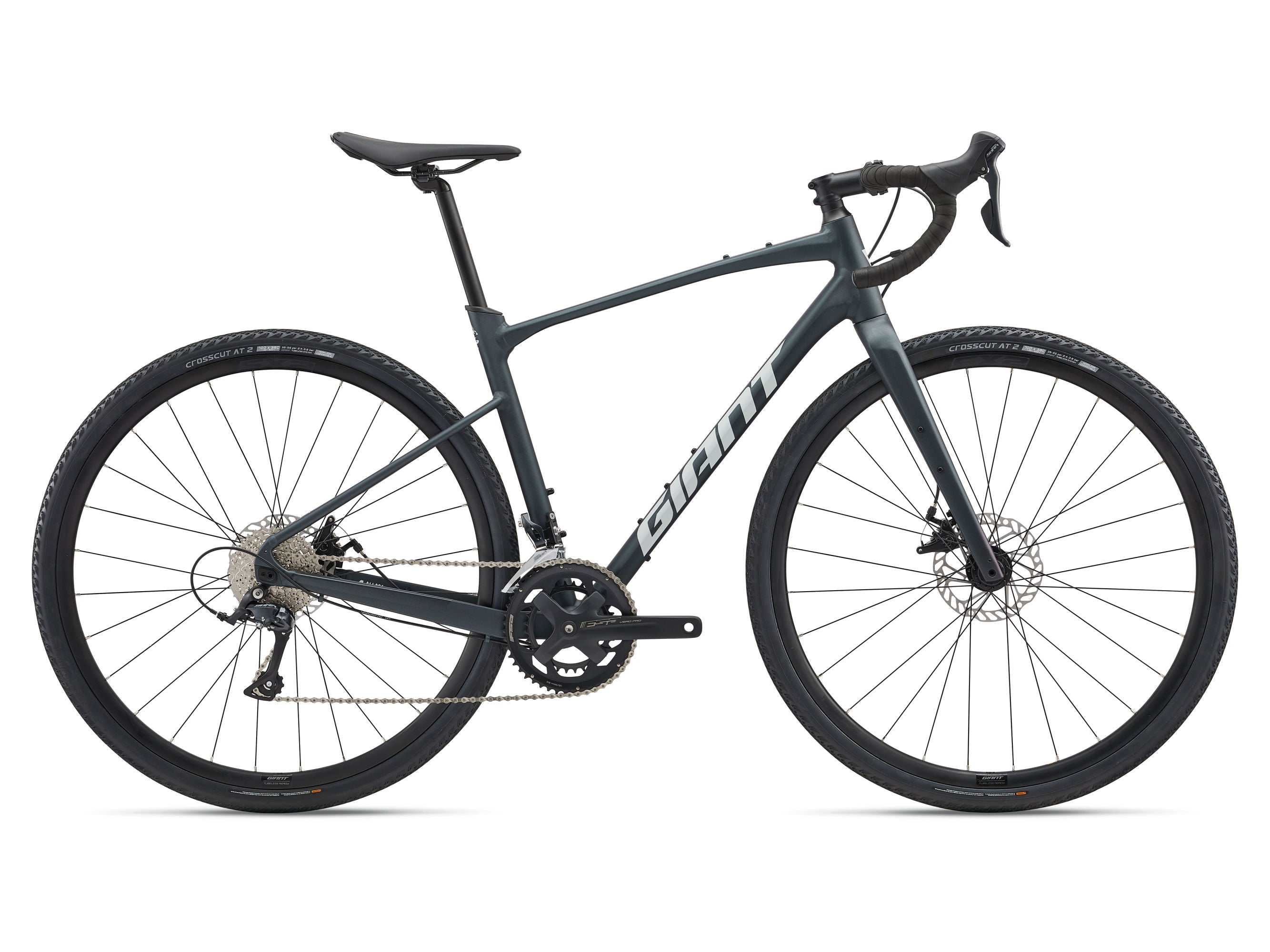

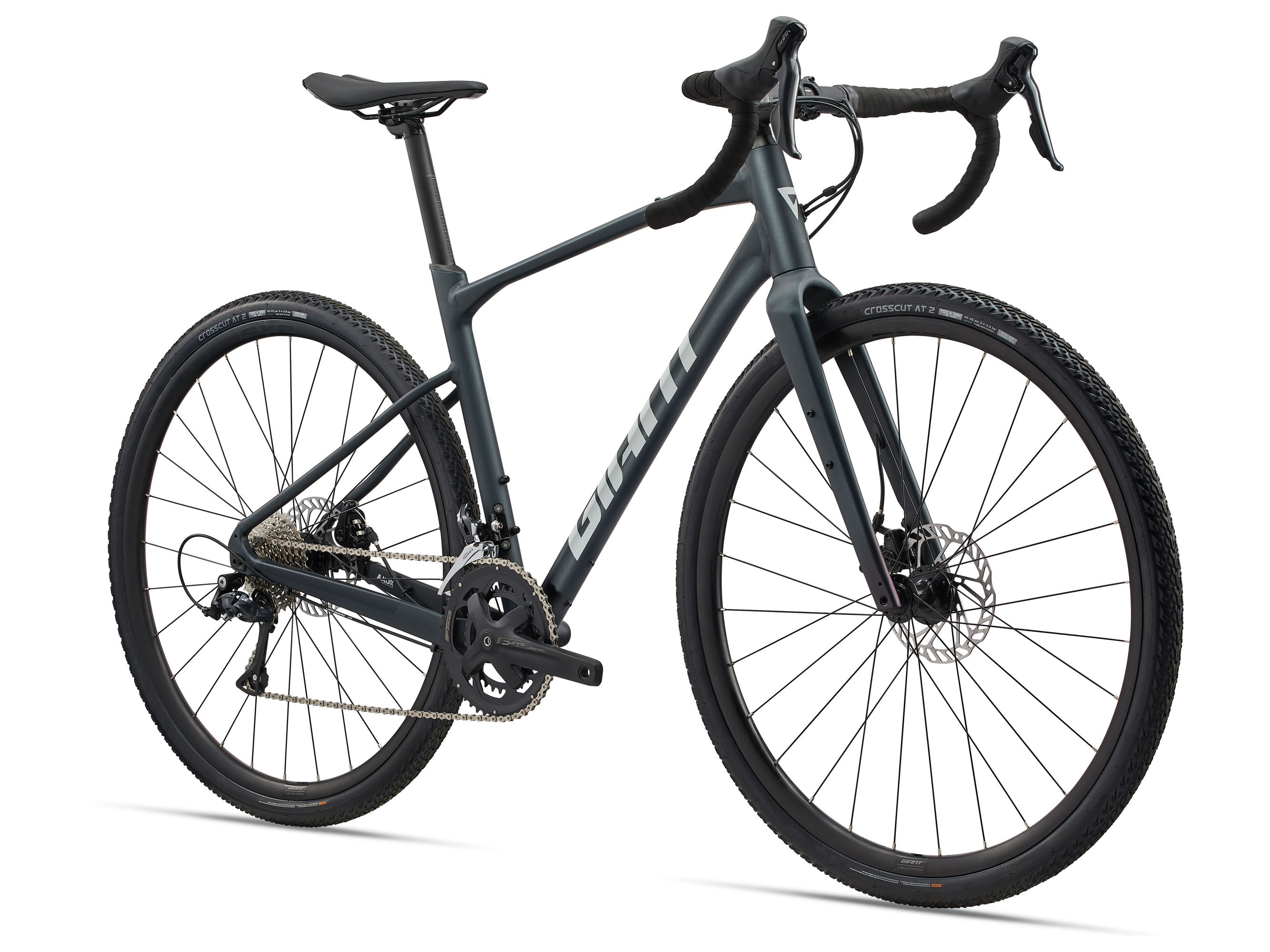

Giant Revolt 2

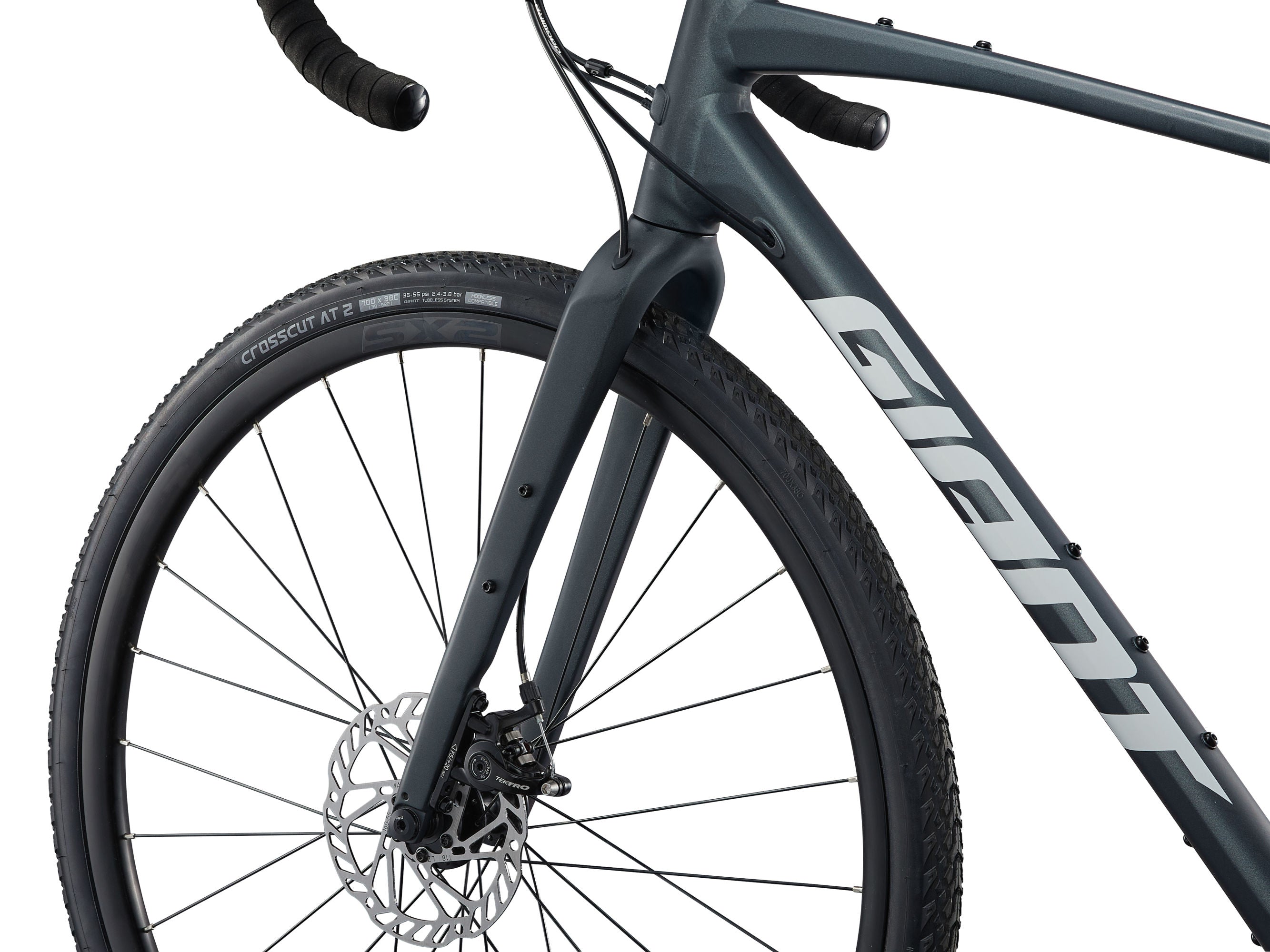

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

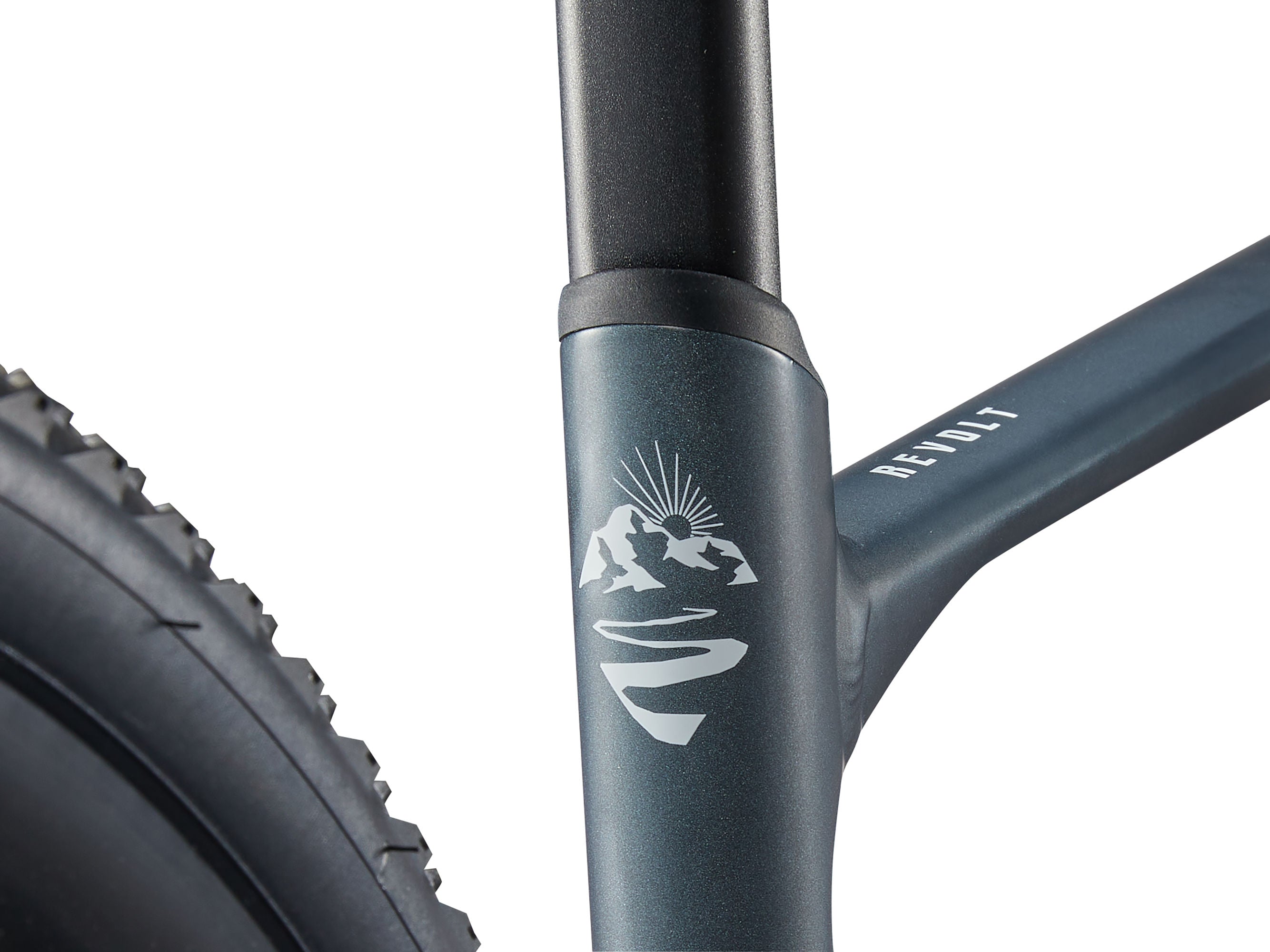

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

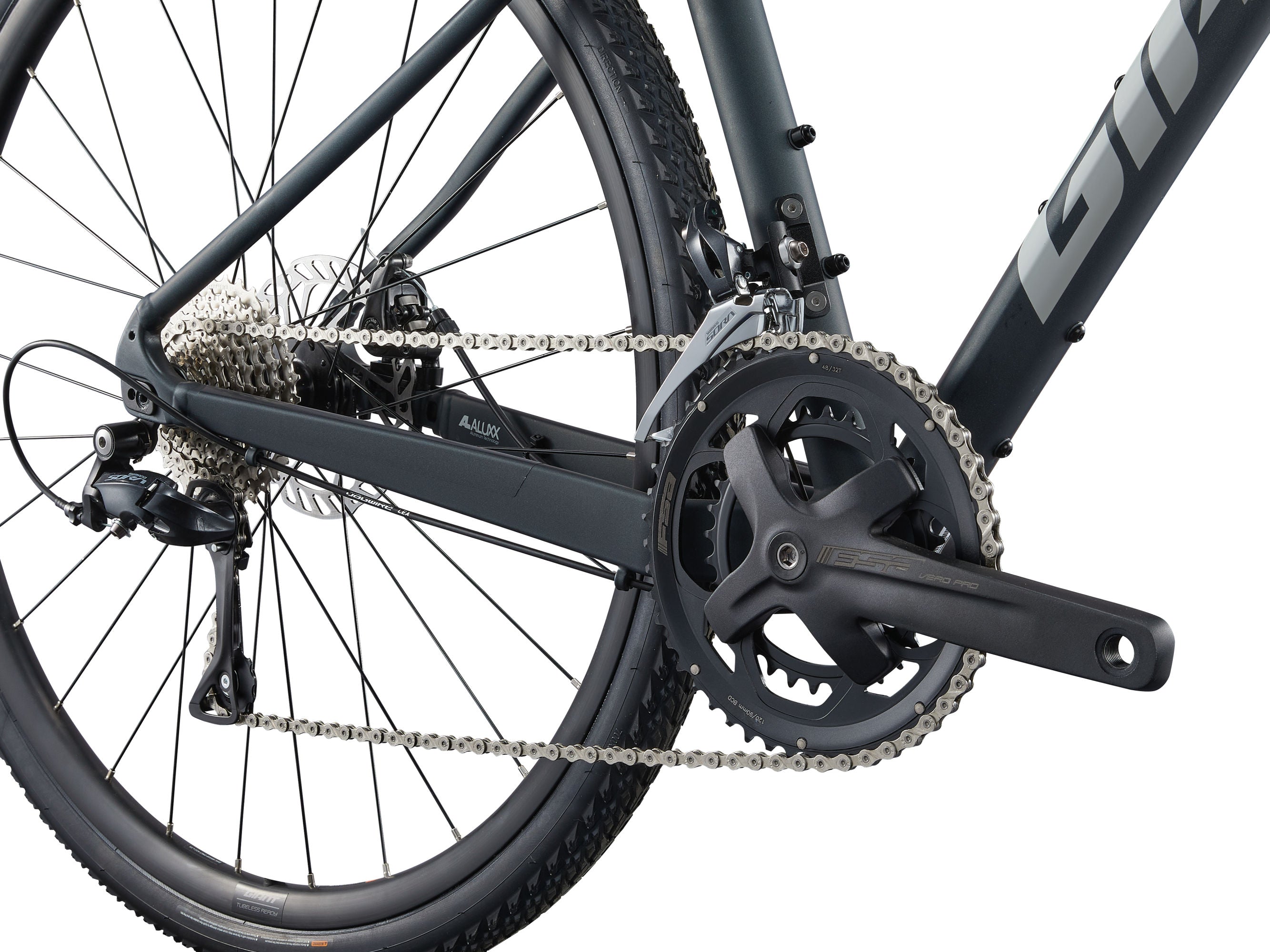

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

The versatile Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.

Geometry

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.

	XS	S	M	ML	L	XL
	SHORT | LONG	SHORT | LONG	SHORT | LONG	SHORT | LONG	SHORT | LONG	SHORT | LONG
A Seat Tube Length (inch)	16.9	17.7	18.5	19.3	20.1	20.9
B Seat Tube Angle	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C Top Tube Length (inch)	21.3	21.7	22	22.6	23	23.6
D Head Tube Length (inch)	4.9	5.3	5.9	6.5	7.1	7.7
E Head Tube Angle	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F Fork Rake (inch)	2	2	2	2	2	2
G Trail (inch)	3.1 | 3.2	2.8 | 3	2.7 | 2.8	2.6 | 2.7	2.6 | 2.7	2.6 | 2.7
H Wheelbase (inch)	40.5 | 40.9	40.4 | 40.7	40.6 | 40.9	40.7 | 41.1	41.1 | 41.5	41.8 | 42.2
I Chain Stay Length (inch)	16.9 | 17.3	16.9 | 17.3	16.9 | 17.3	16.9 | 17.3	16.9 | 17.3	16.9 | 17.3
J Bottom Bracket Drop (inch)	3.1 | 3.2	3.1 | 3.2	3.1 | 3.2	3.1 | 3.2	3.1 | 3.2	3.1 | 3.2
K Stack (inch)	21.9	22.4	23.1	23.7	24.3	24.8
L Reach (inch)	15	15	15.2	15.4	15.6	16
M Stand Over Height (inch)	28.2 | 28.5	28.9 | 29.2	29.6 | 29.9	30.3 | 30.6	30.9 | 31.2	31.5 | 31.9
N Handlebar Width (inch)	16.5	16.5	17.3	17.3	18.1	18.1
O Stem Length (inch)	2	2.4	2.8	3.1	3.1	3.5
P Crank Length (inch)	6.7	6.7	6.8	6.8	6.9	6.9
Q Wheel Size	700x 42C |	700x 42C |	700x 42C |	700x 42C |	700x 42C |	700x 42C |
