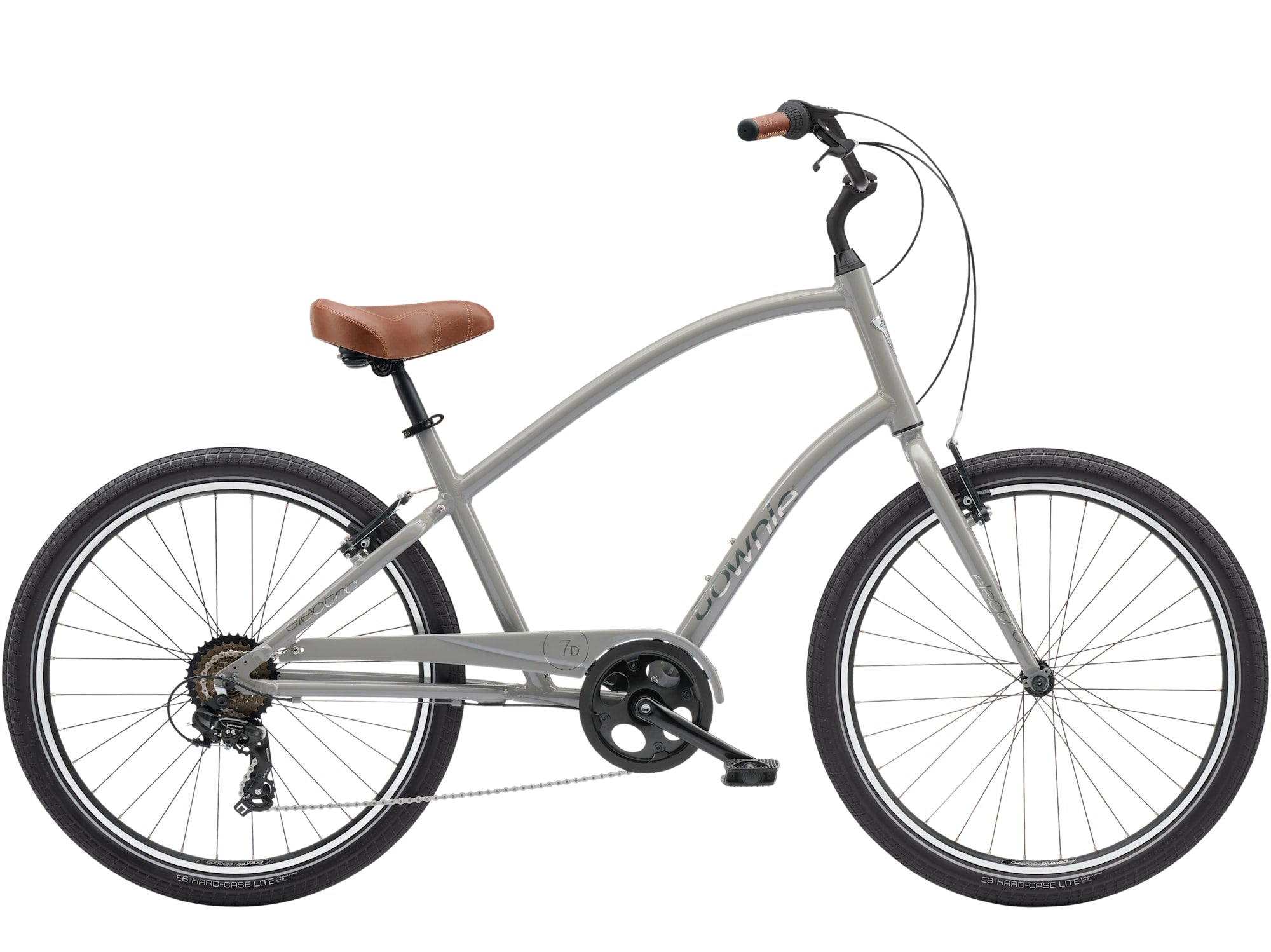

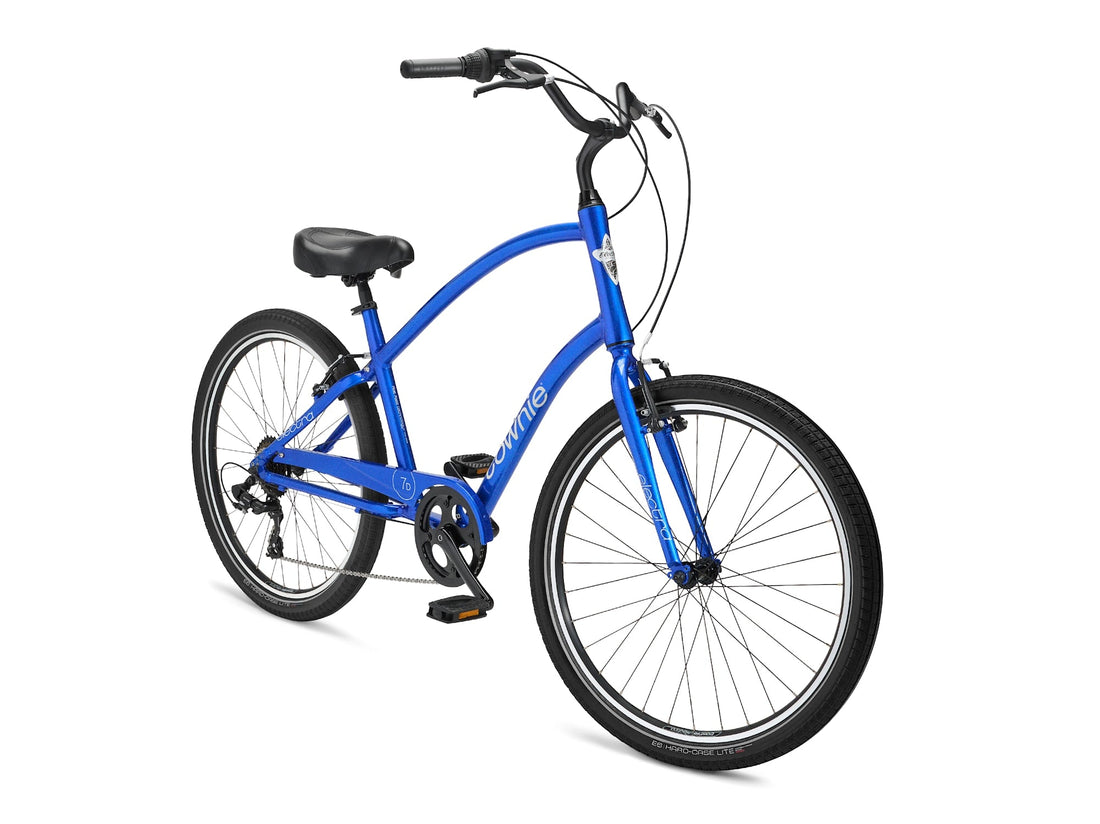

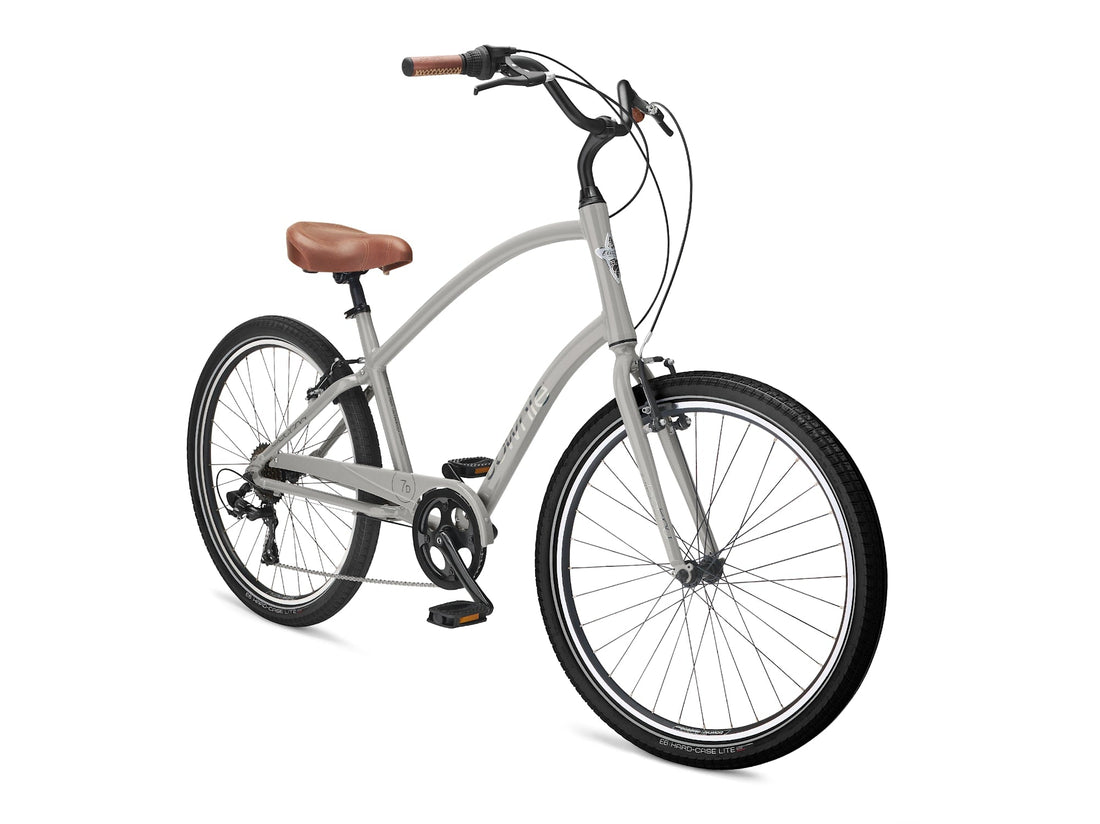

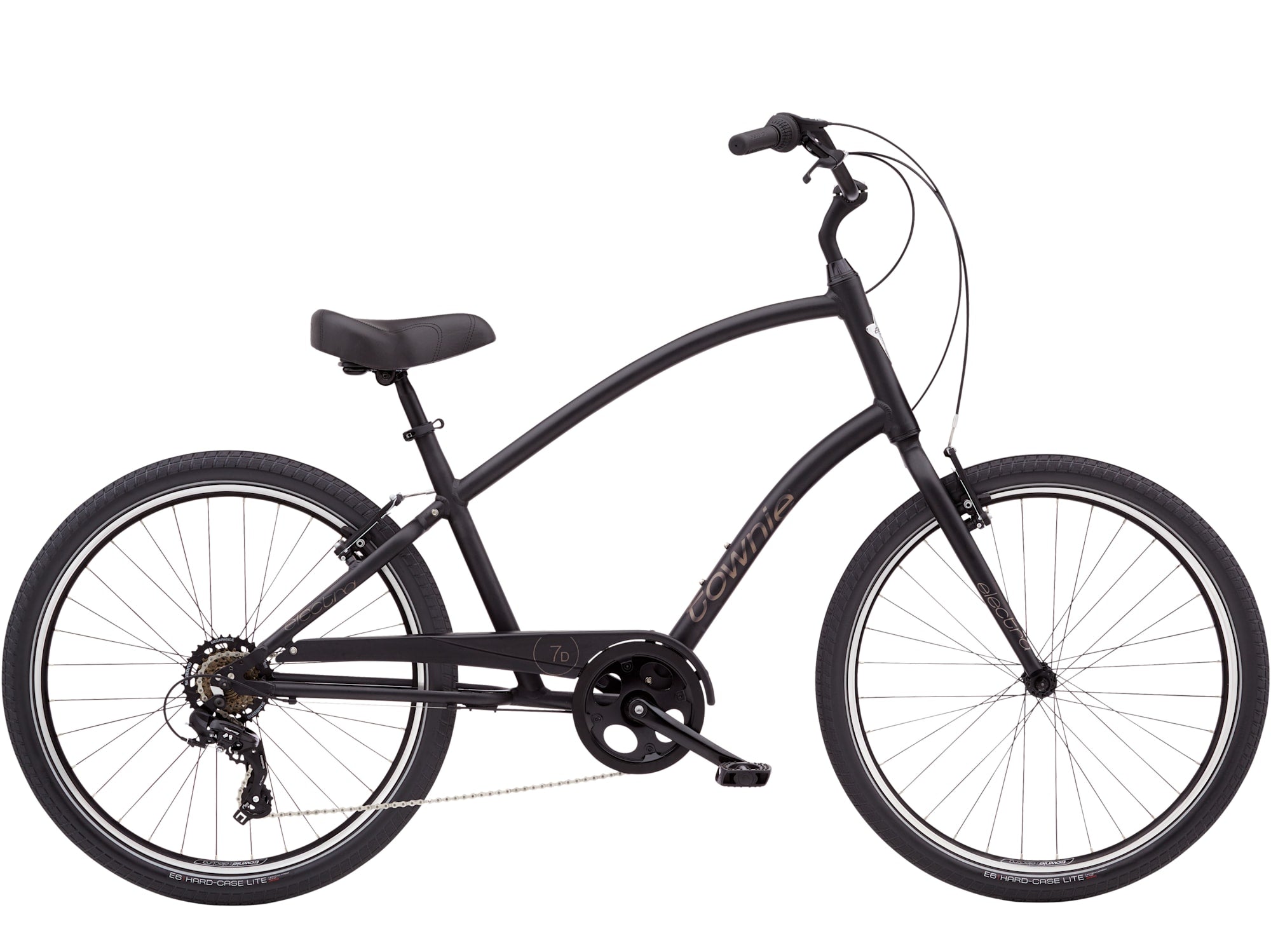

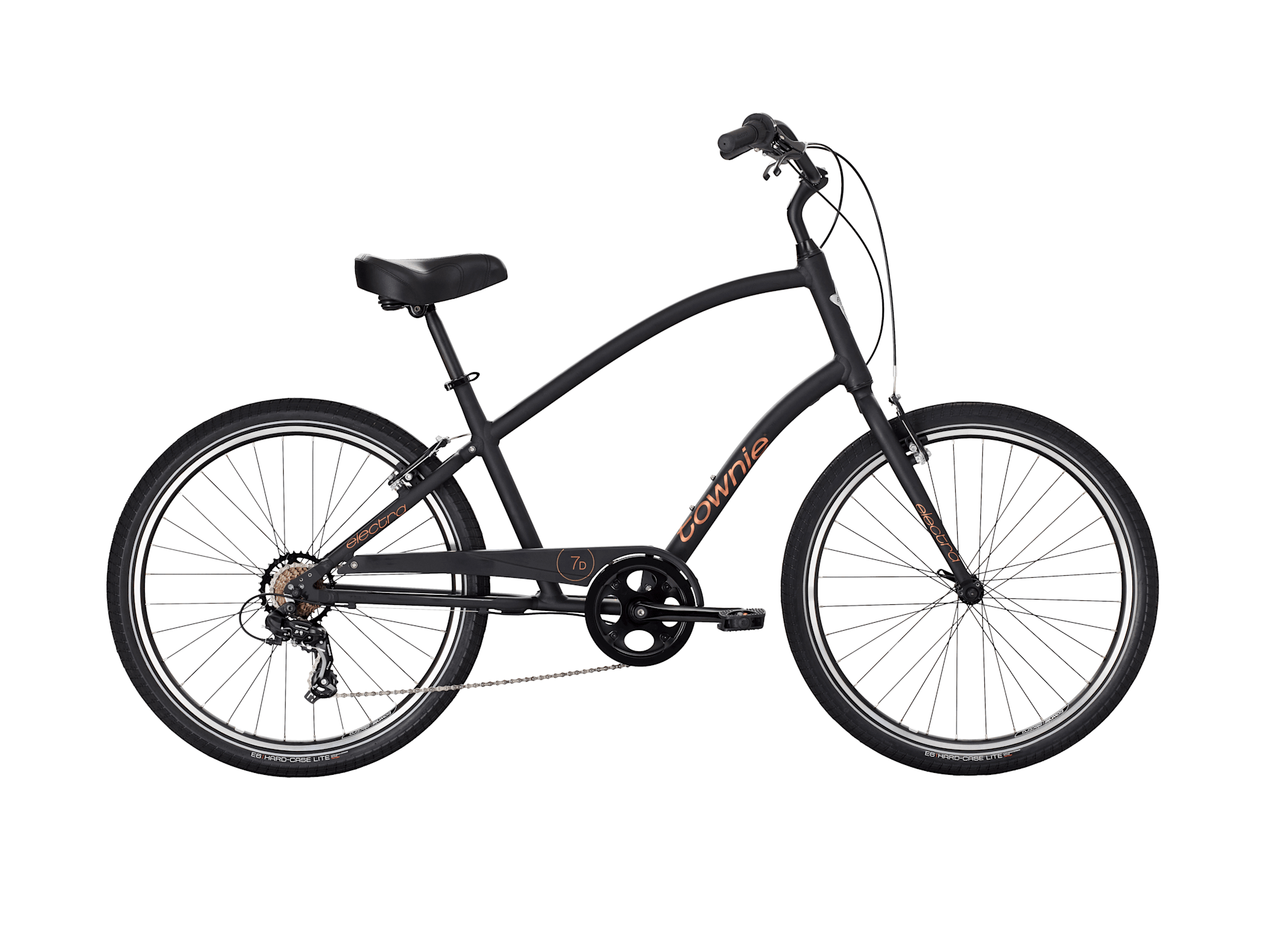

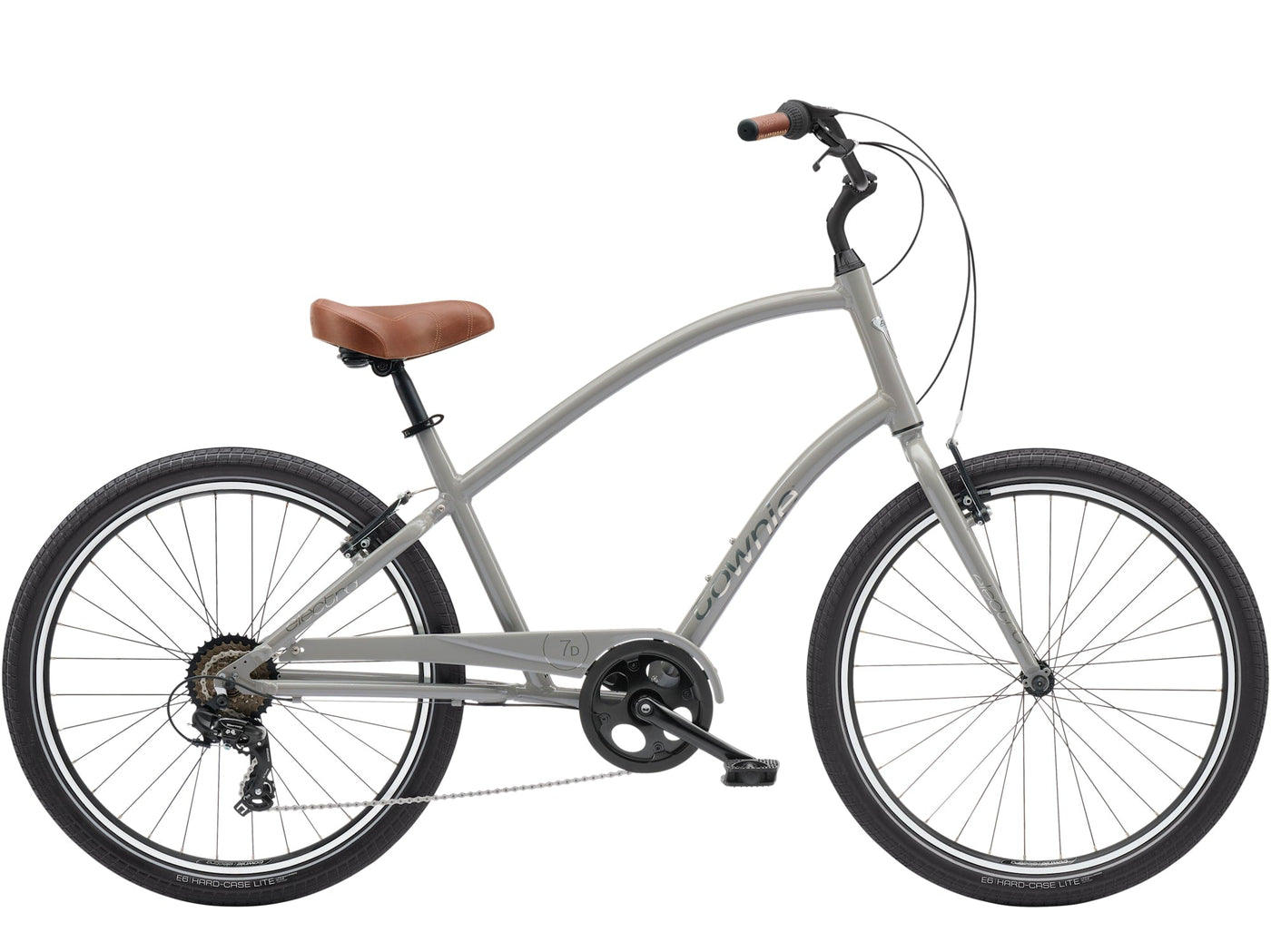

Electra Townie 7D Step Over

Frame & Geometry

• Frame Material: 6061-T6 aluminum

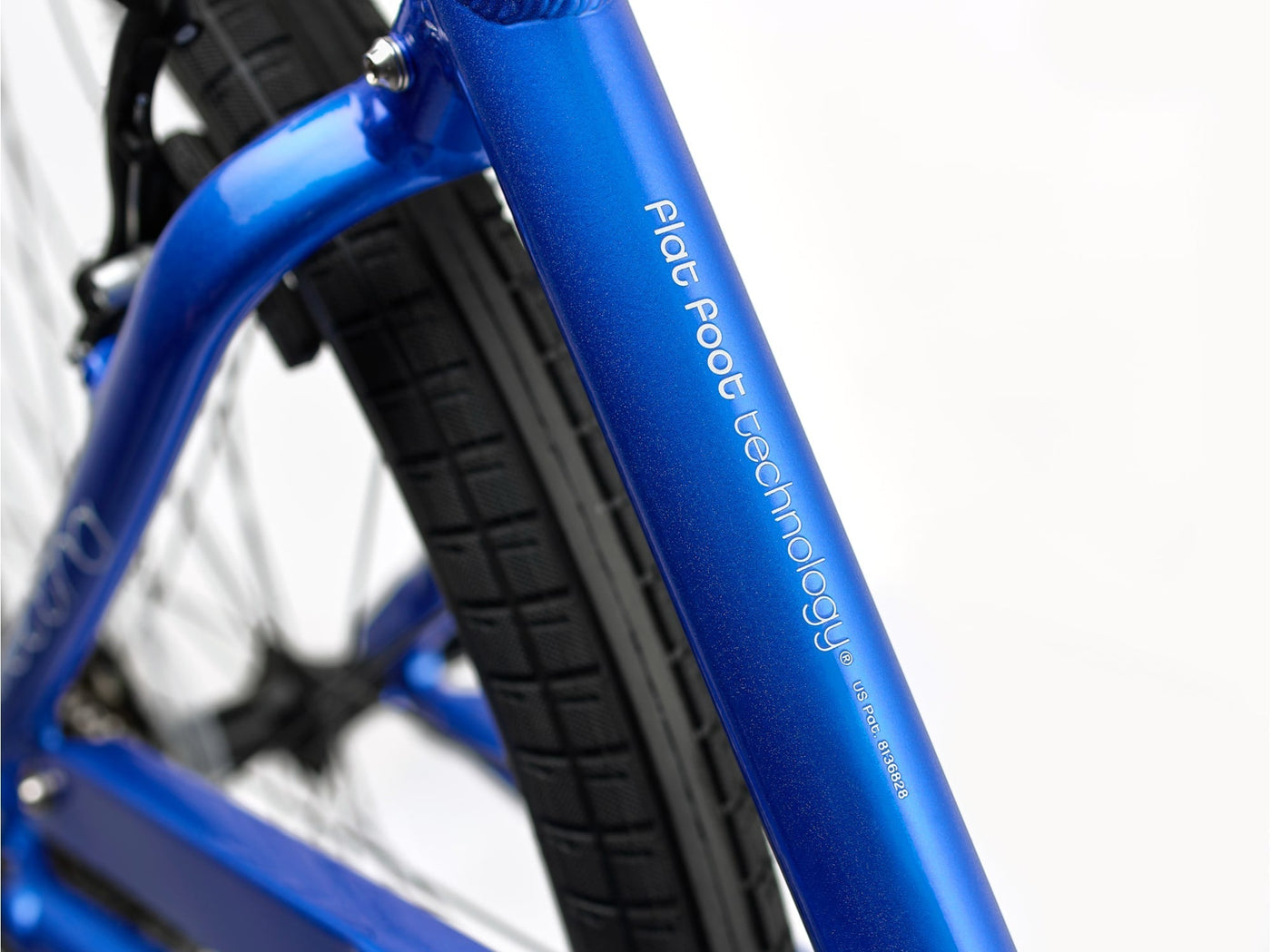

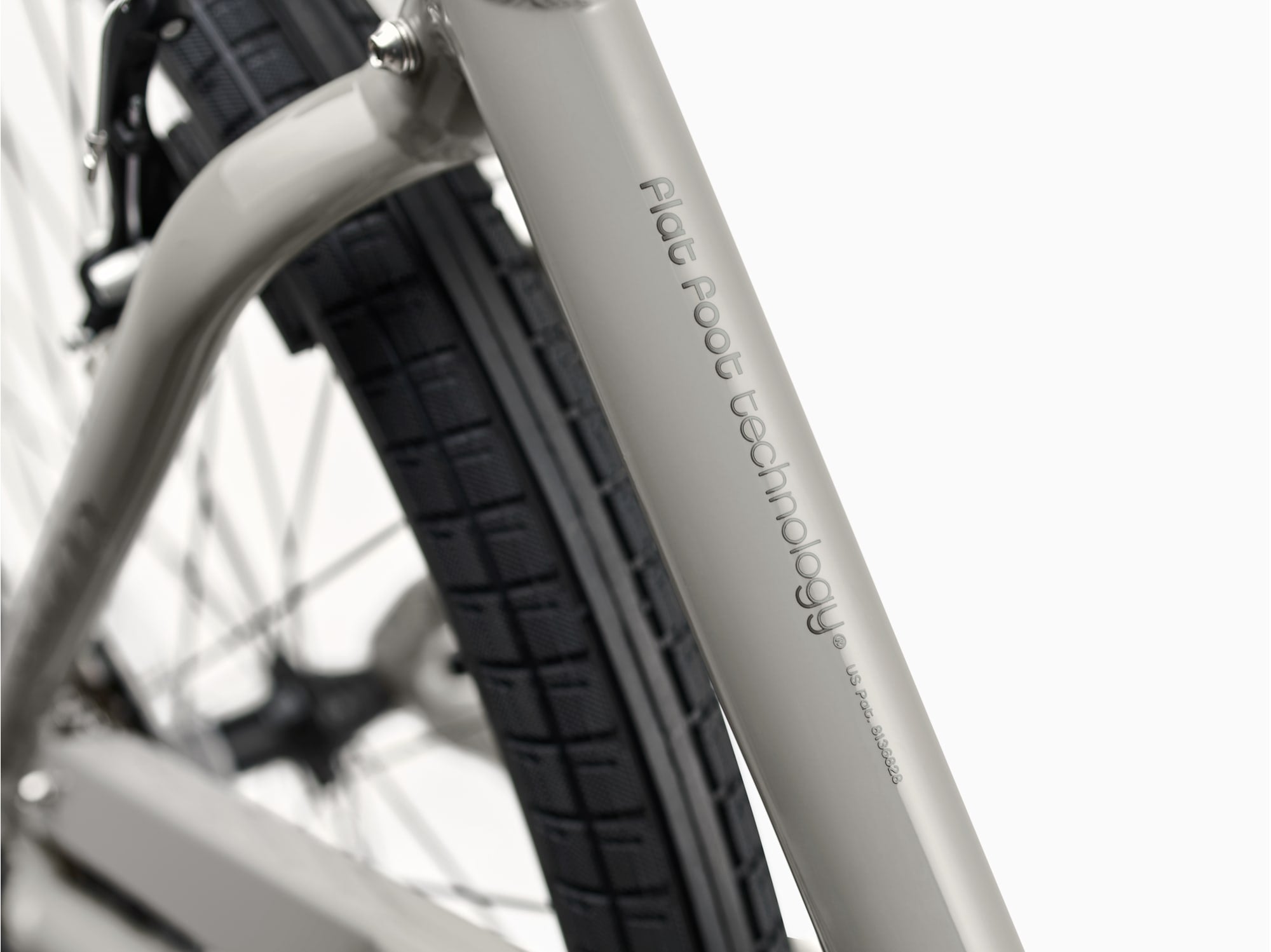

• Design: Patented Flat Foot Technology® for an upright riding position

• Geometry: Step-over design for easy mounting and dismounting

• Sizes Available: Medium and Tall

• Wheel Size: 26 inches

Drivetrain & Gearing

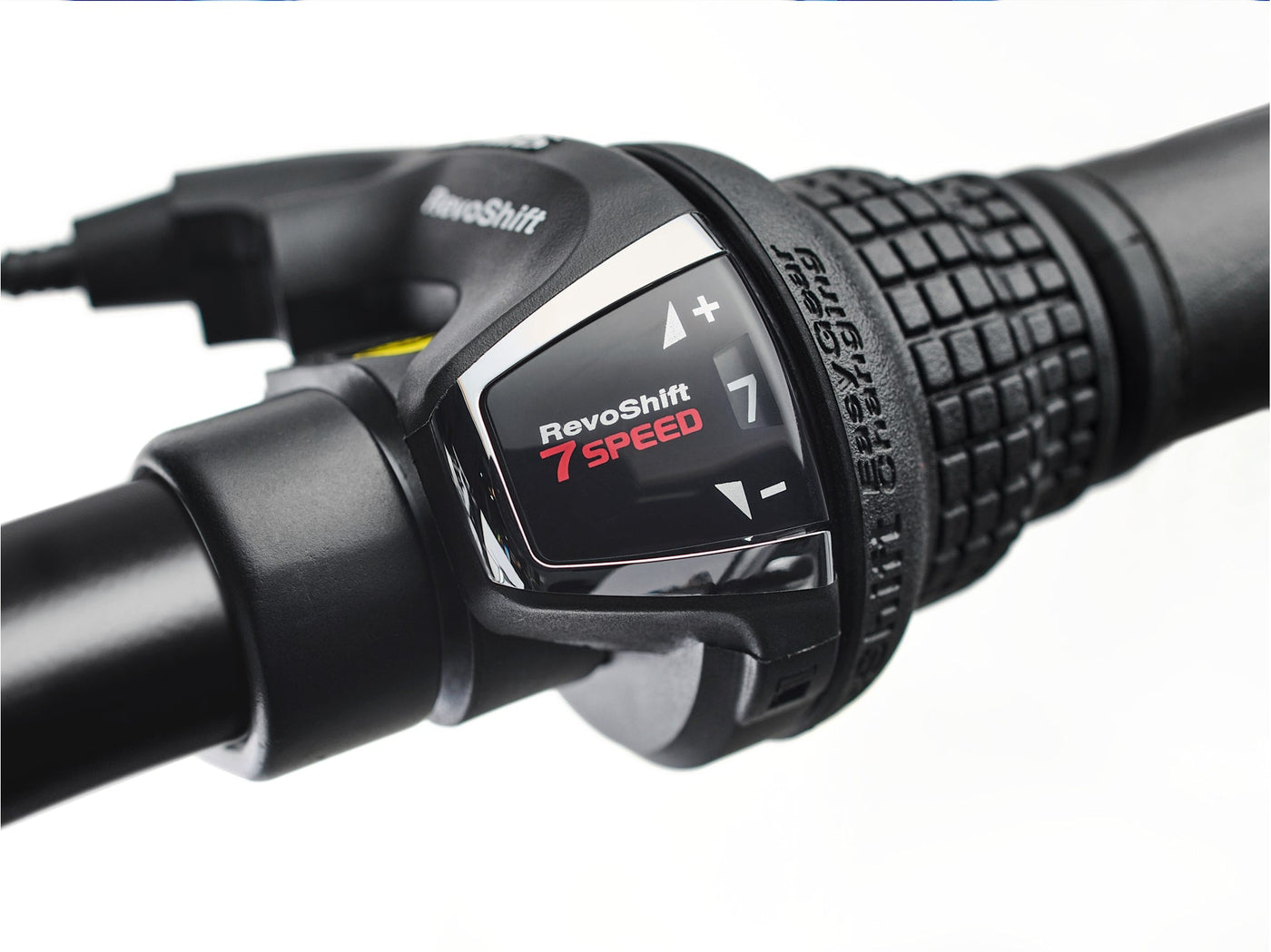

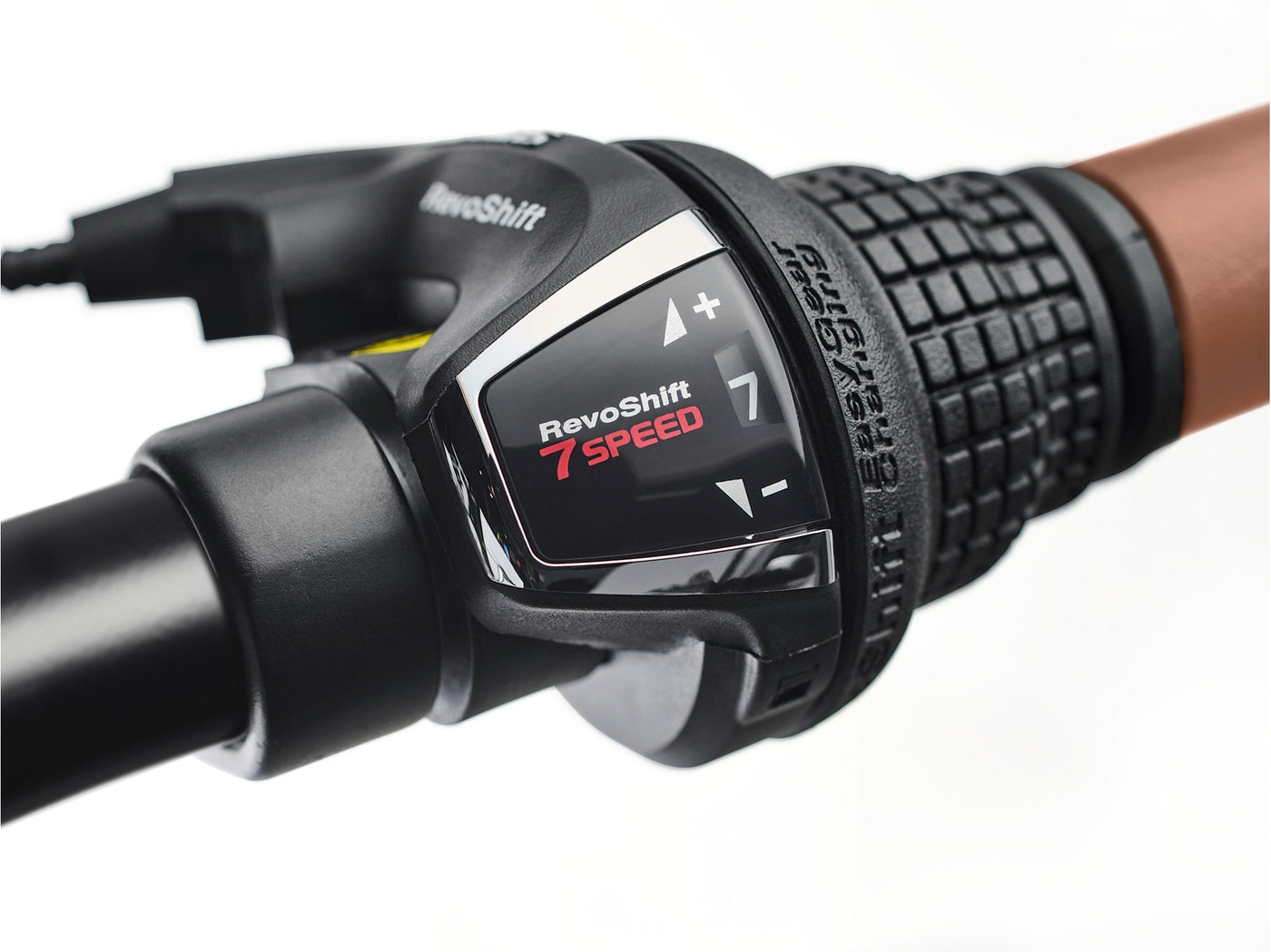

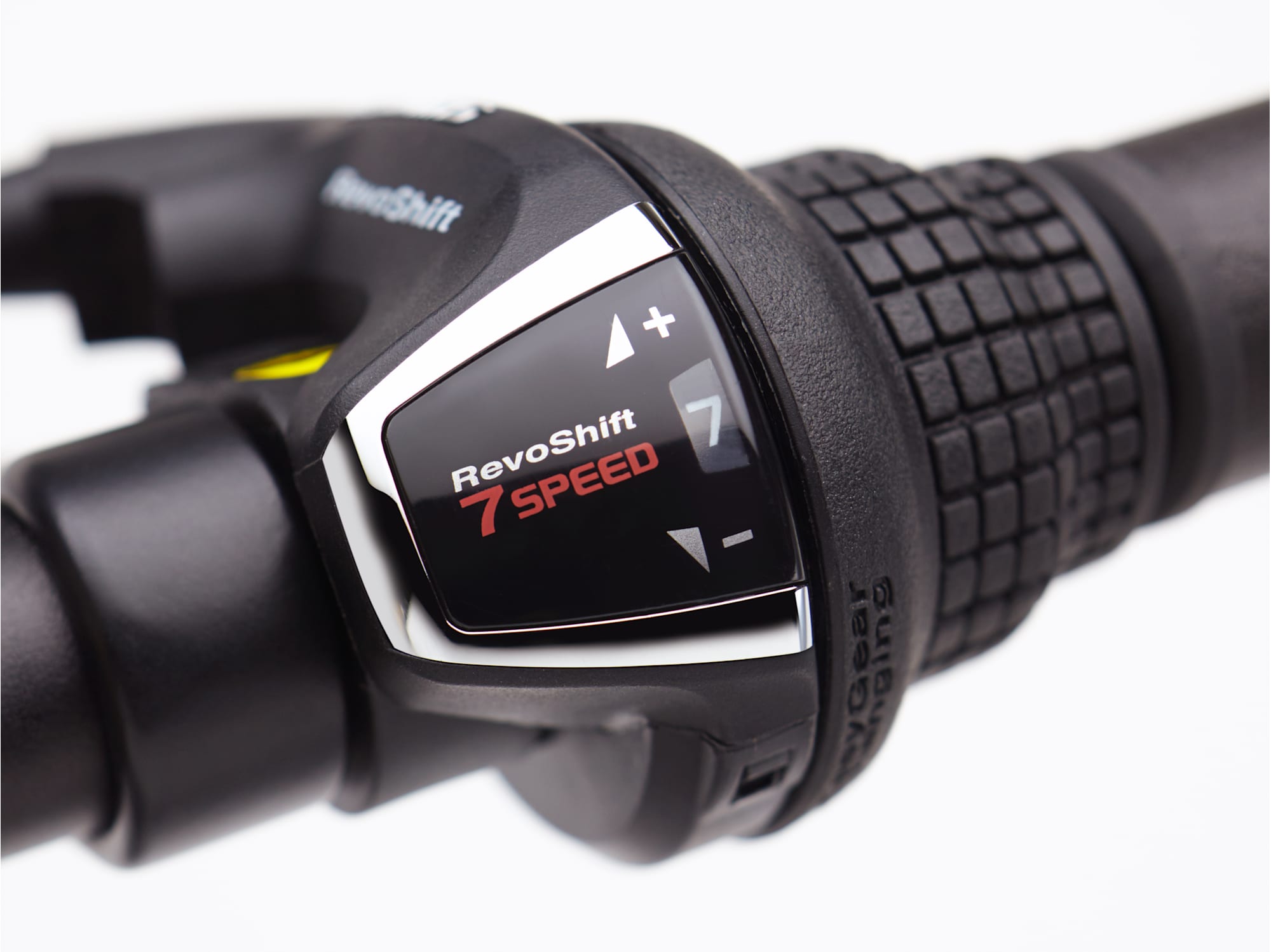

• Shifters: Shimano Tourney Revo 7-speed twist shifter with optical gear display

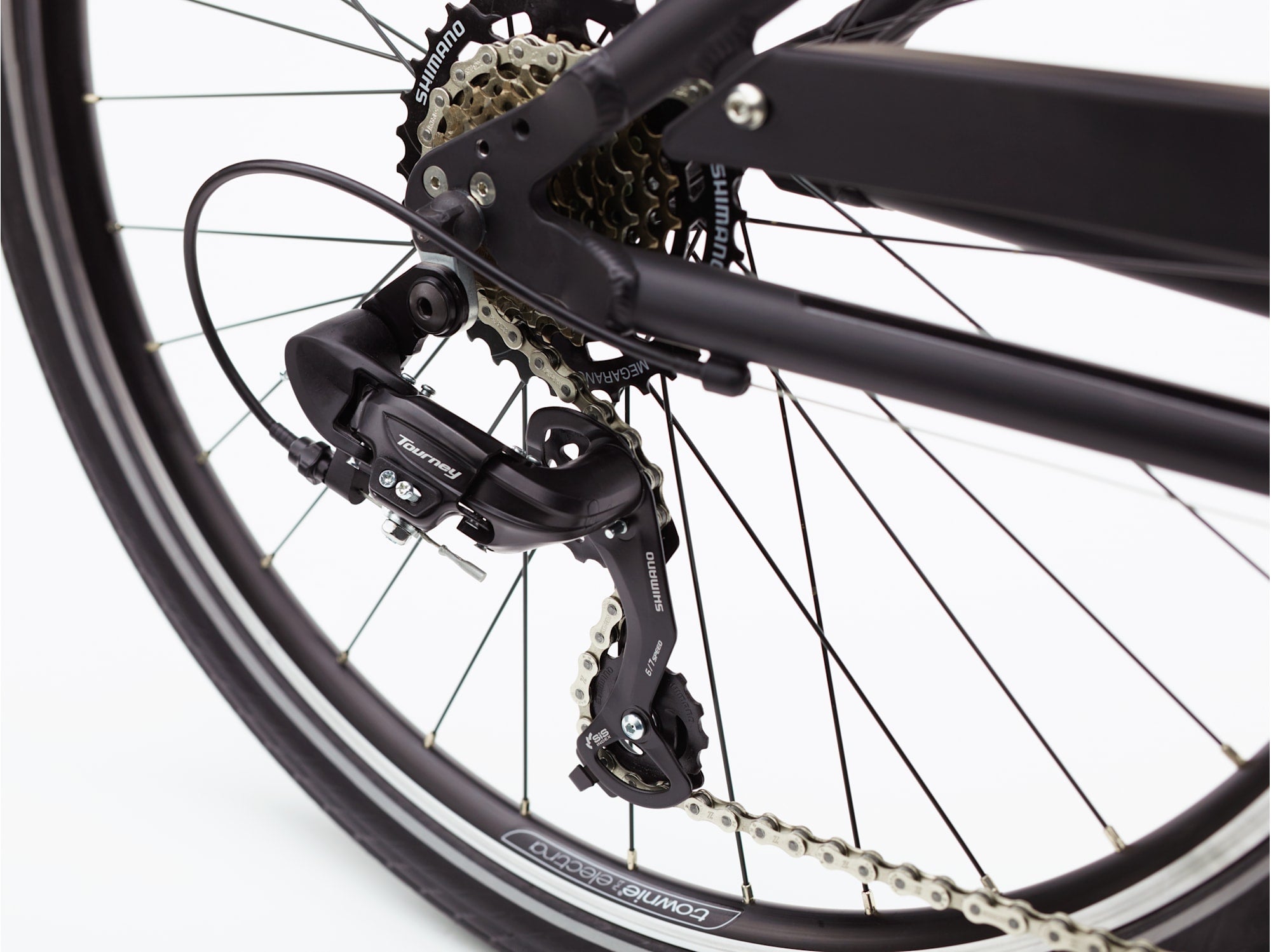

• Rear Derailleur: Shimano Tourney TY300

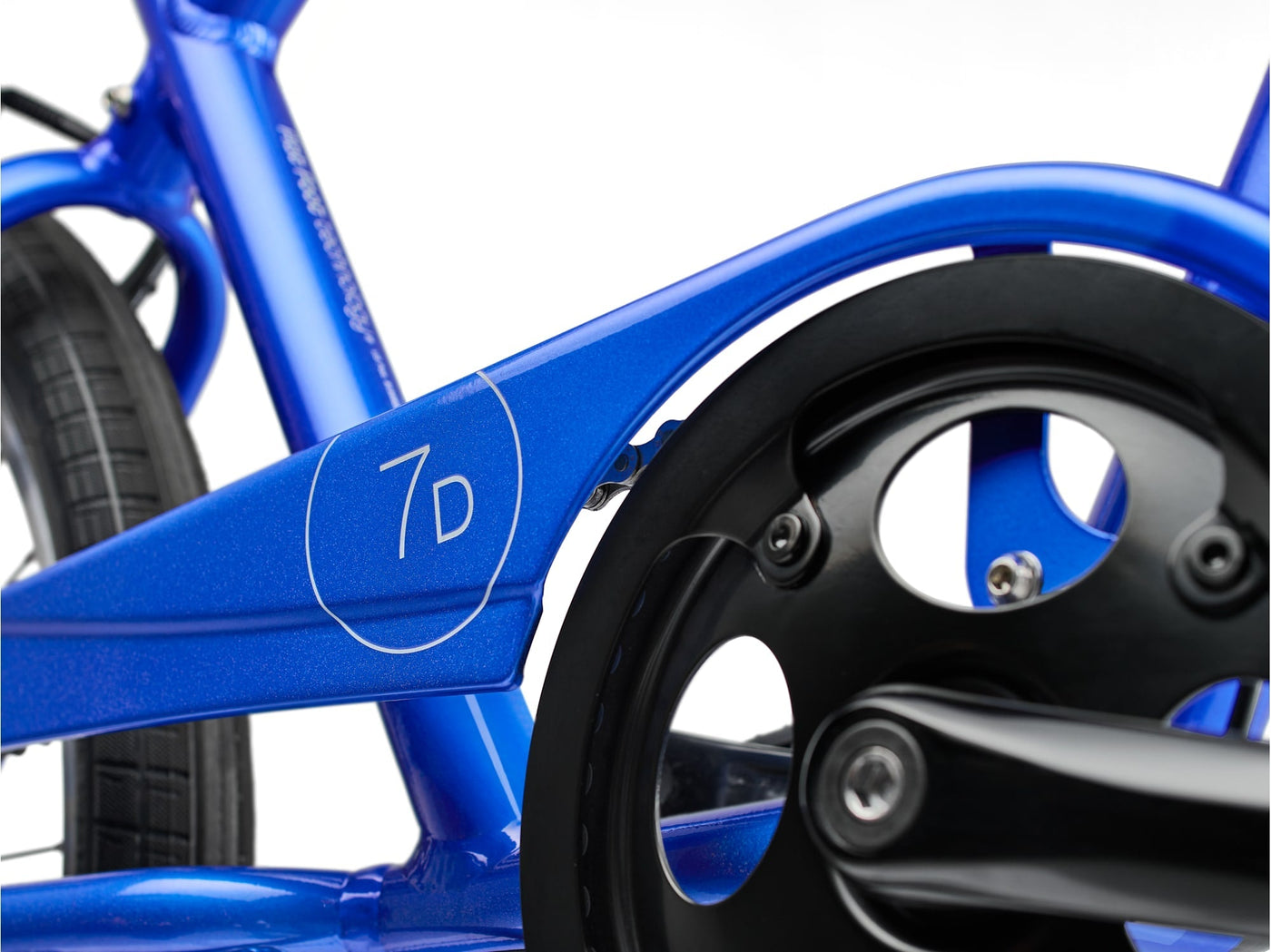

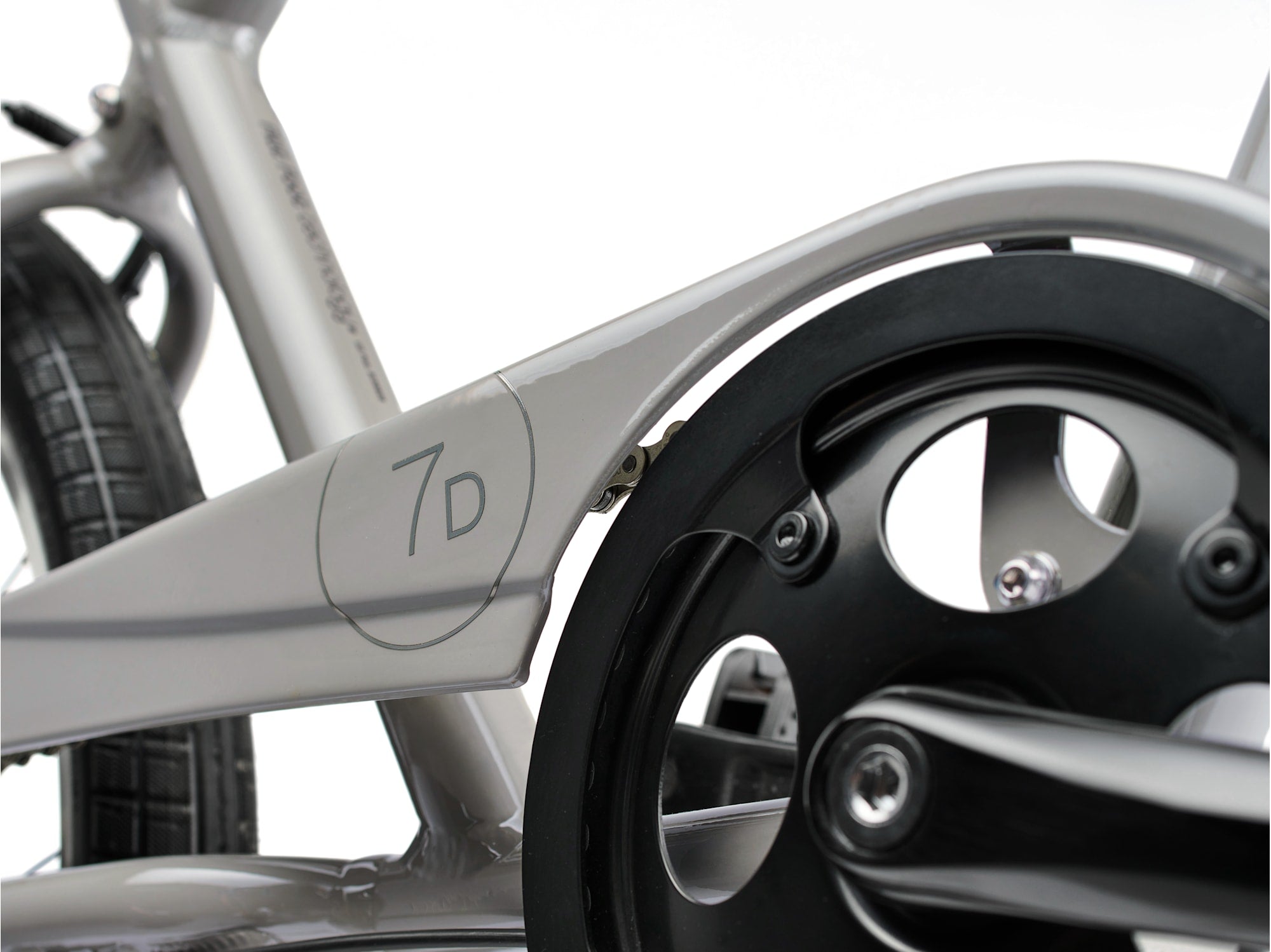

• Crankset: Forged alloy 170mm with 44T steel chainring and double chainguards

• Cassette: Shimano 7-speed 14-34T freewheel

• Chain: KMC Z7, 7-speed

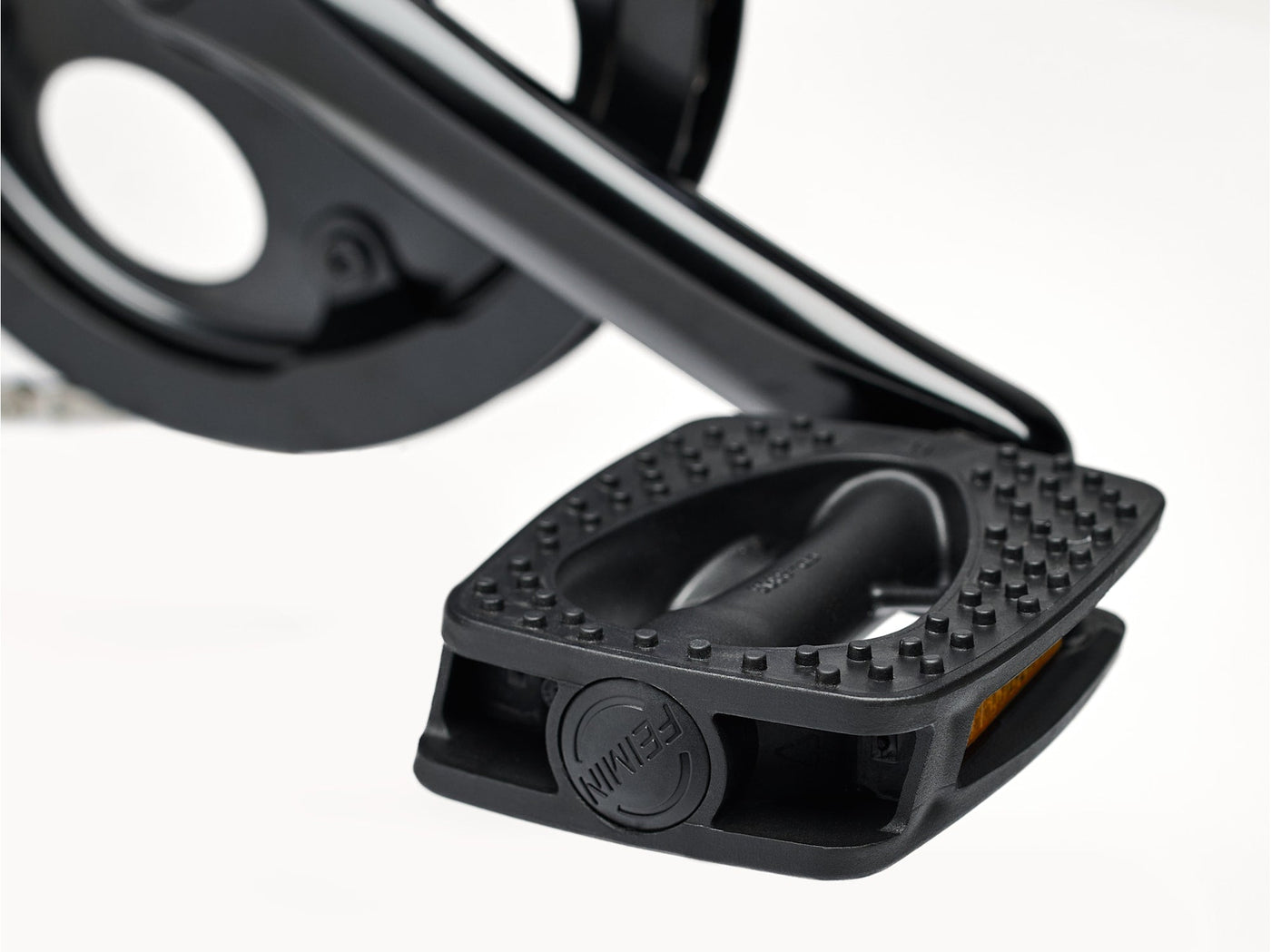

• Pedals: Resin platform with non-slip tread

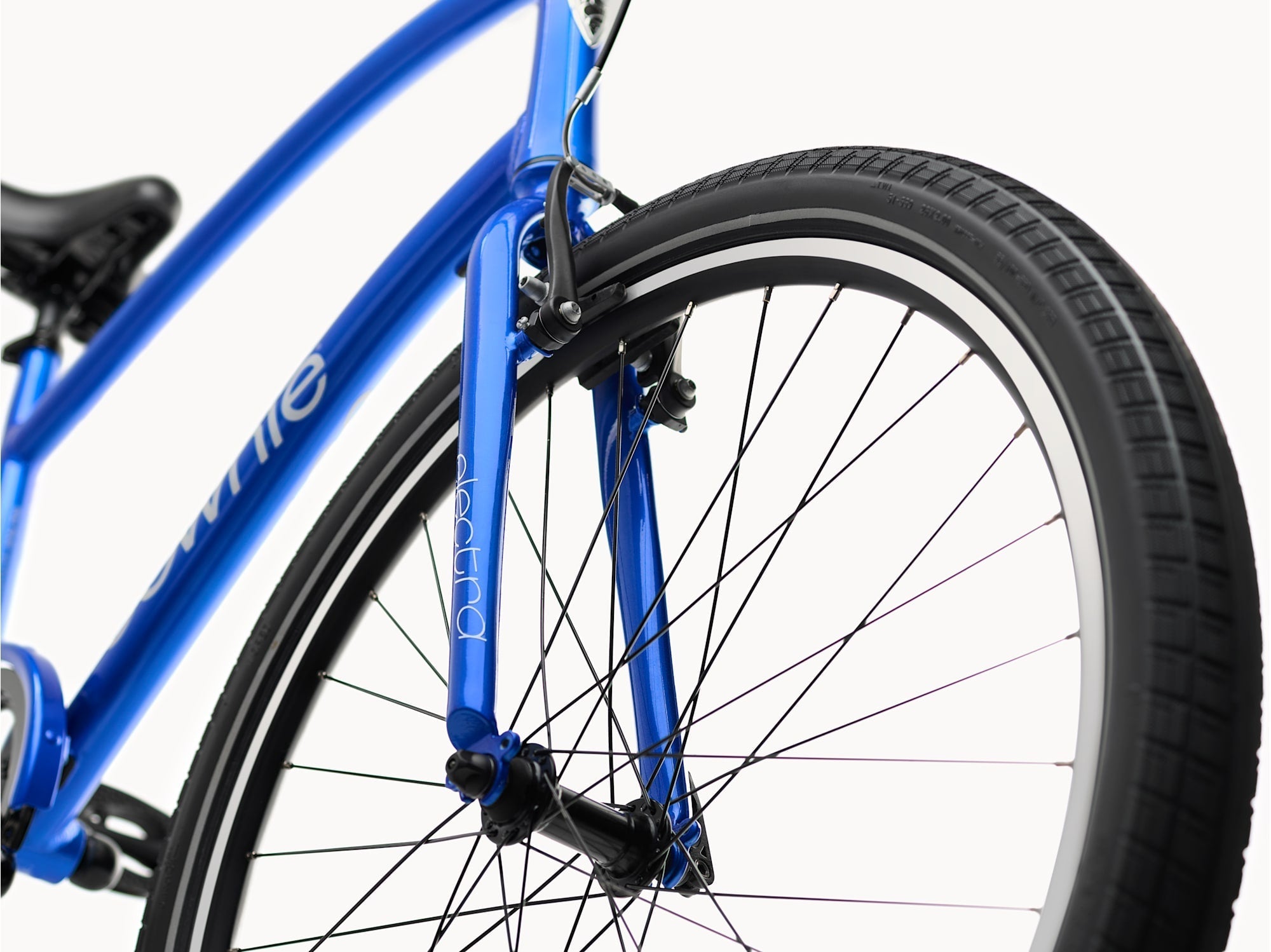

Brakes & Wheels

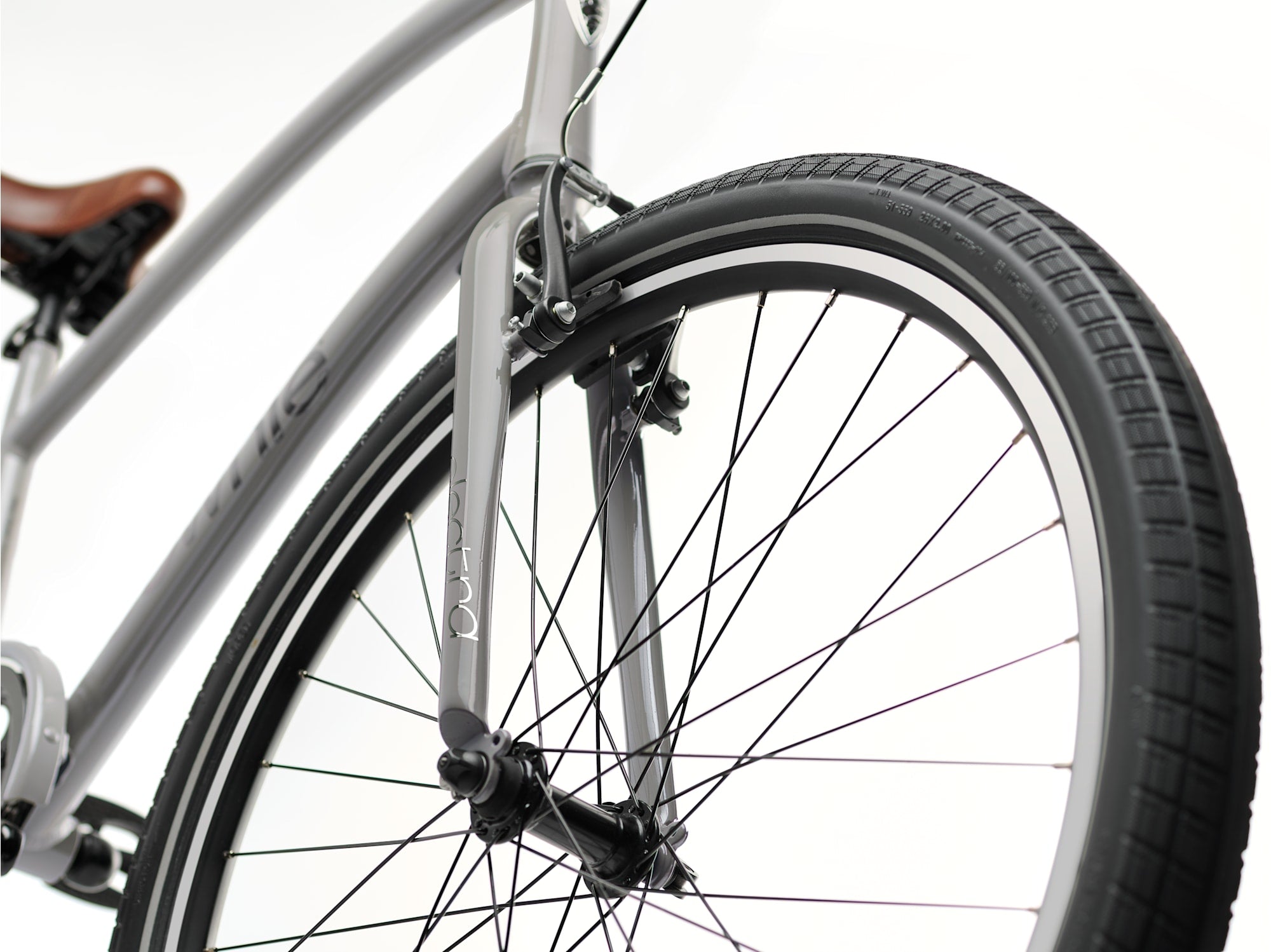

• Brakes: Alloy linear-pull brakes with alloy 3-finger brake levers

• Tires: Bontrager E6 Hard-Case Lite 26x2.00" with reflective sidewalls

• Front Hub: Shimano Nexus Dynamo hub (on EQ model)

• Rims: Alloy rims with 14g stainless steel spokes

Cockpit & Accessories

• Handlebars: Alloy custom bend, 25.9" width, 4" rise

• Stem: Forged alloy 25.4mm quill, 80mm extension

• Grips: Electra hand-stitched grips

• Headset: 1 1/8" steel threaded/semi-integrated

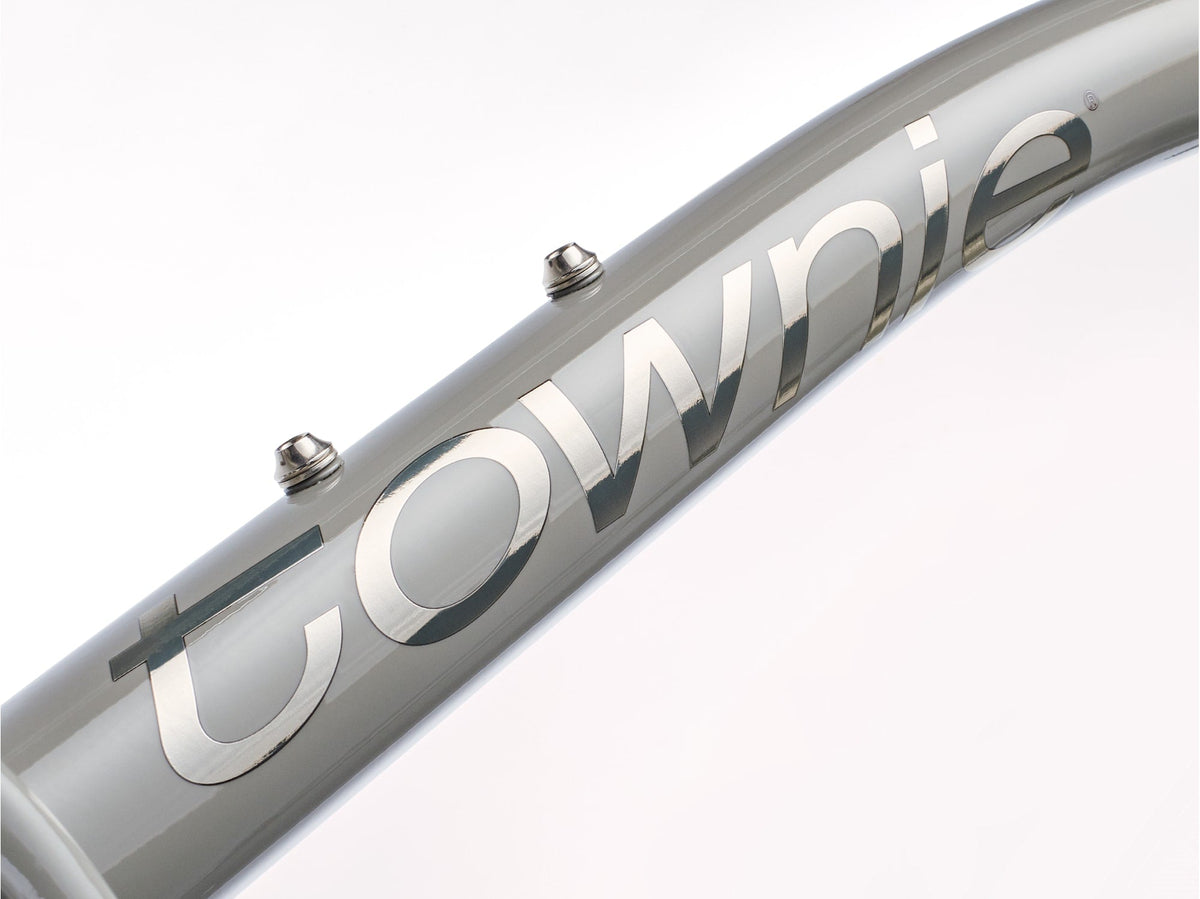

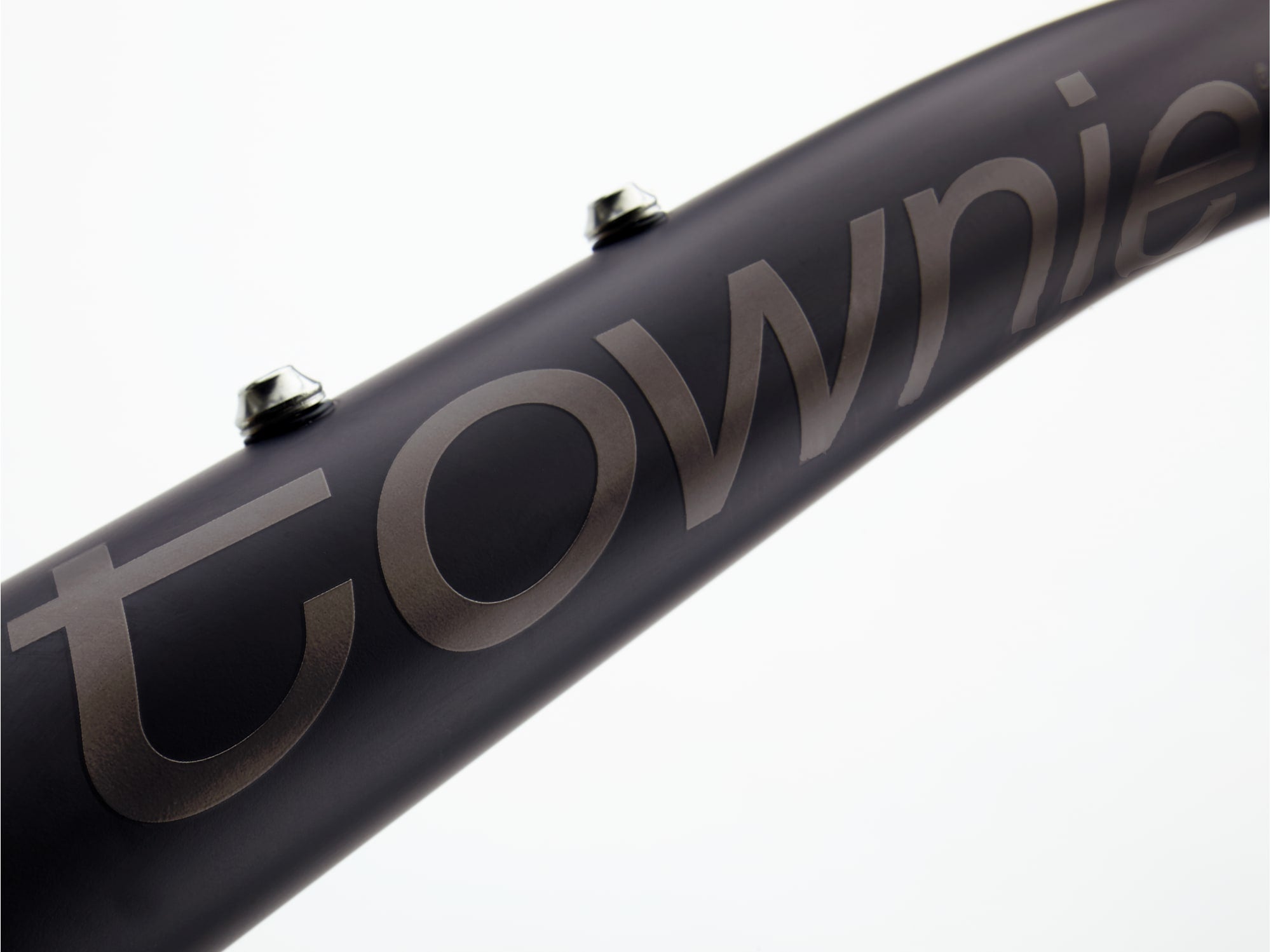

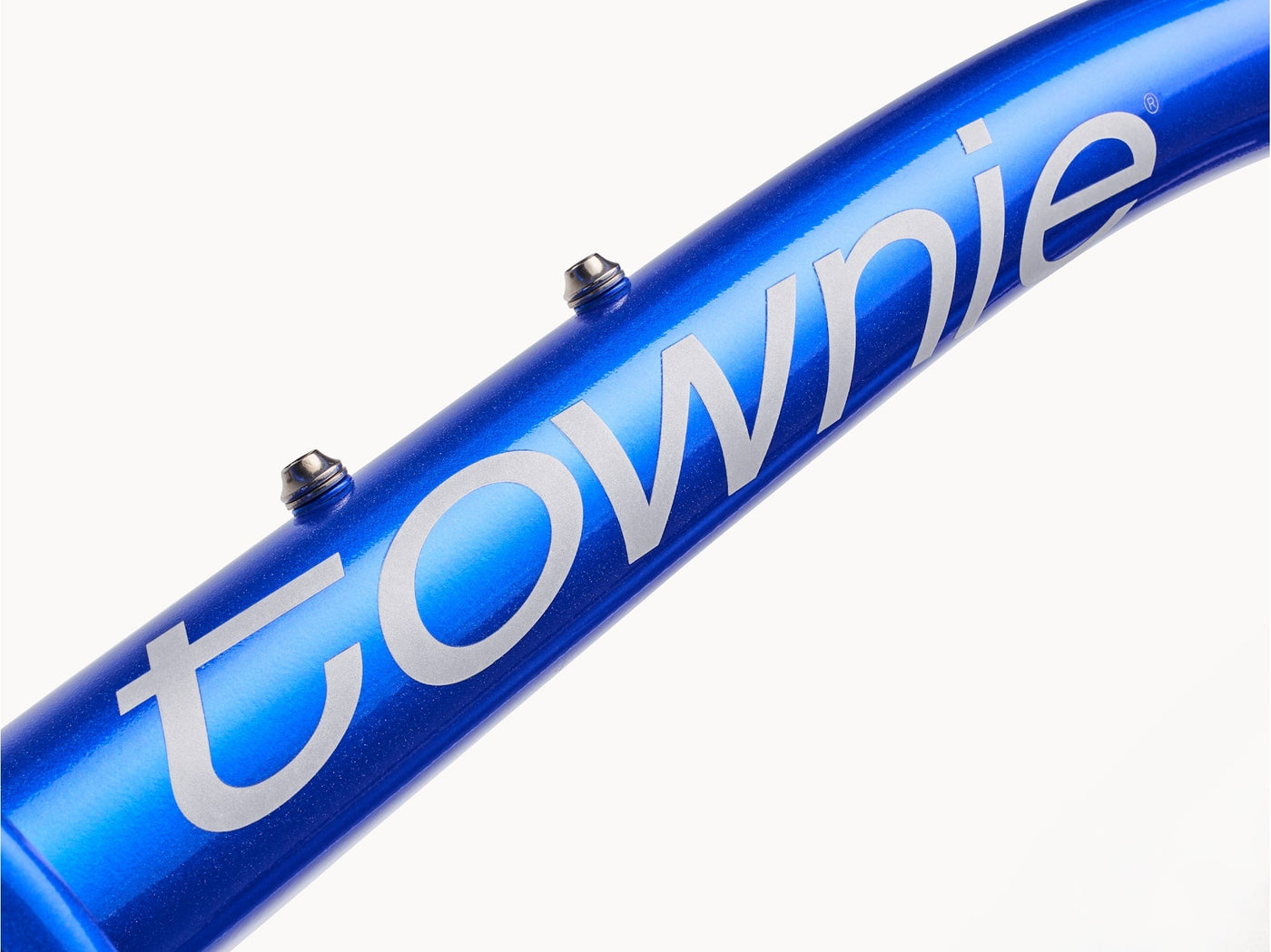

• Extras: Internal cable routing, painted chainguard, water bottle mounts, platform pedals

• Lighting: Spanninga Kendo XD LED front light and LED rear light (on EQ model)

• Stand: Alloy kickstand

Comfort & Fit

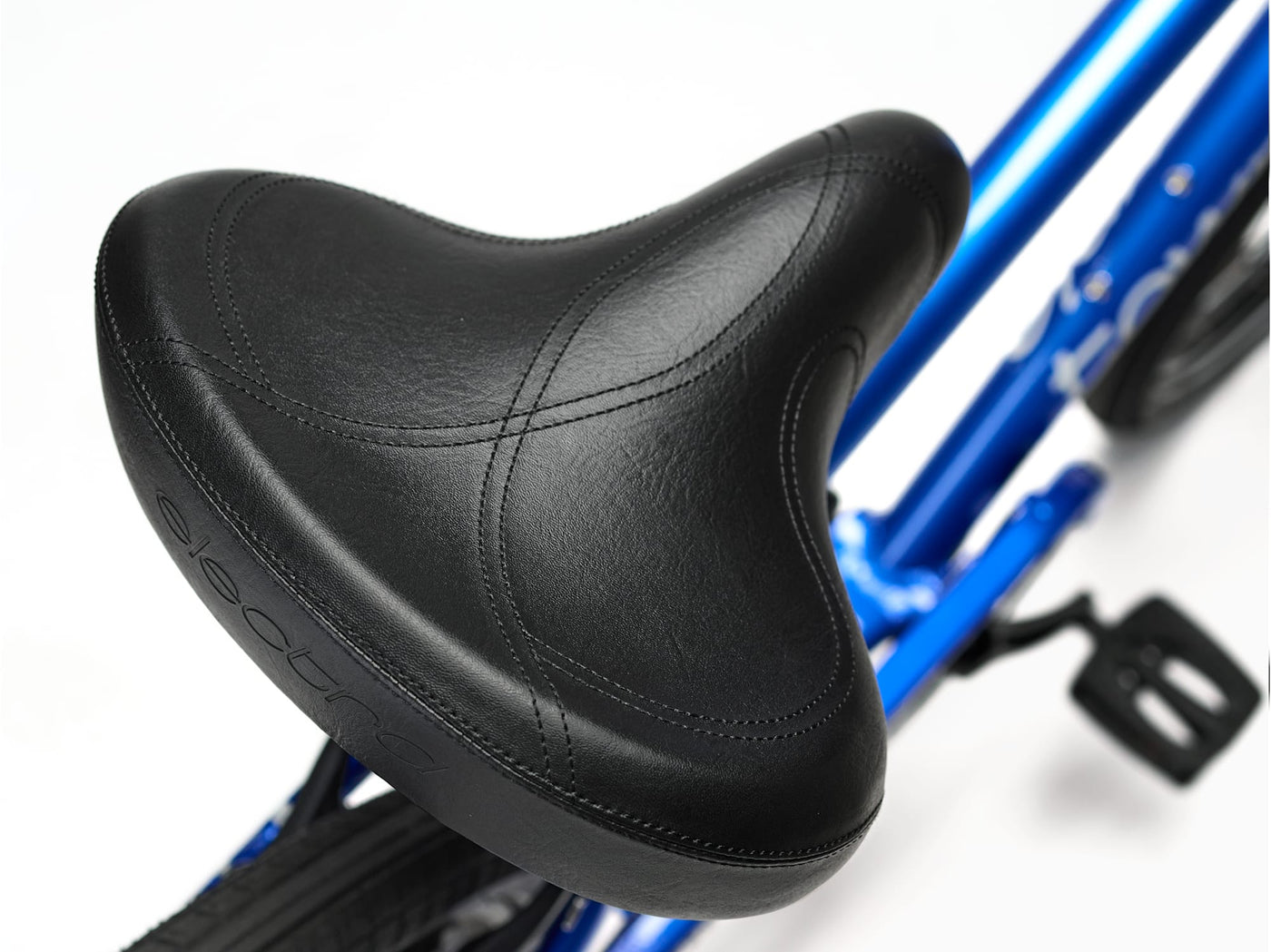

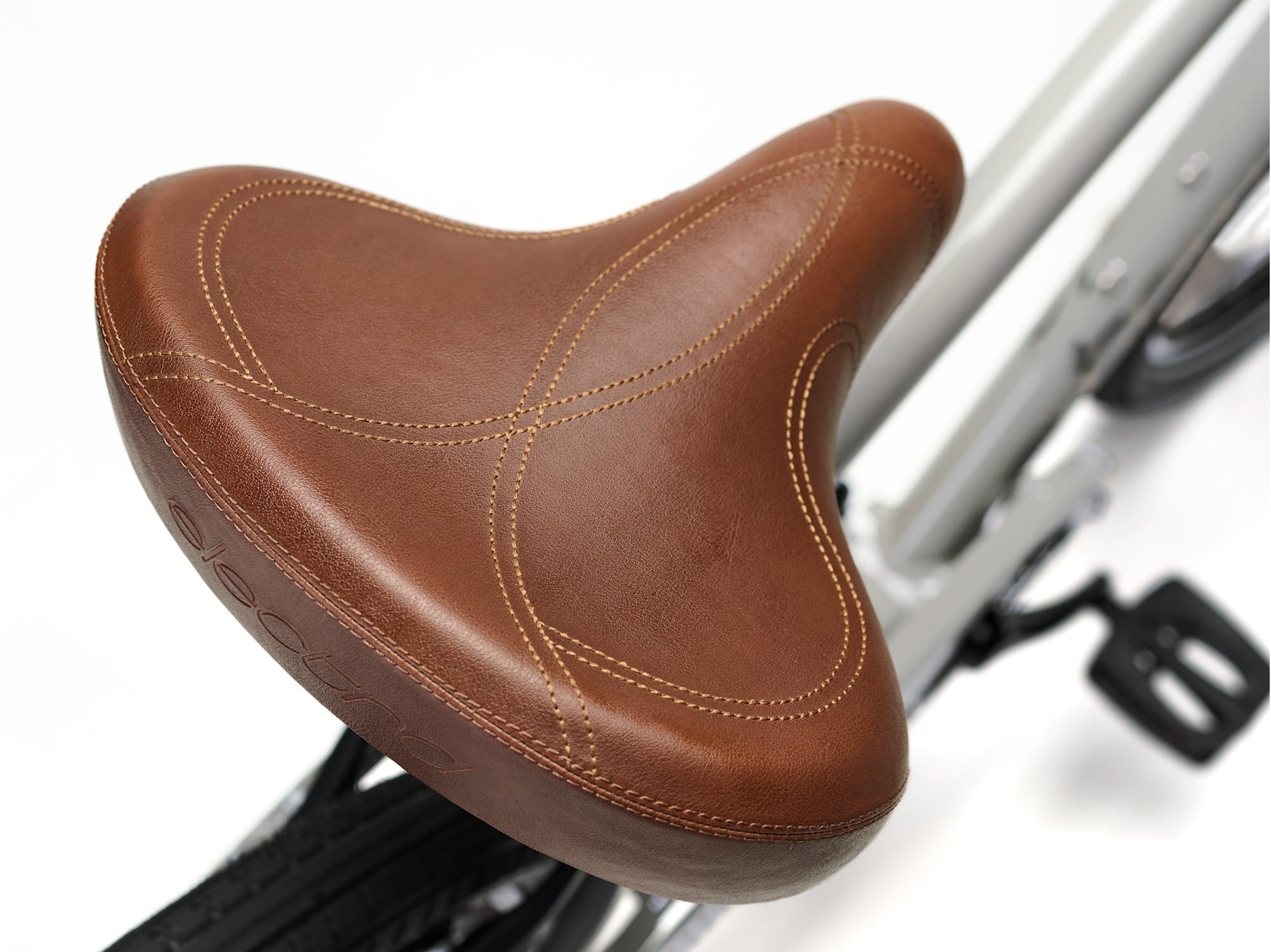

• Saddle: Elastomer saddle with ergonomic design for comfort

• Riding Position: Upright seating for improved visibility and comfort

Color Options

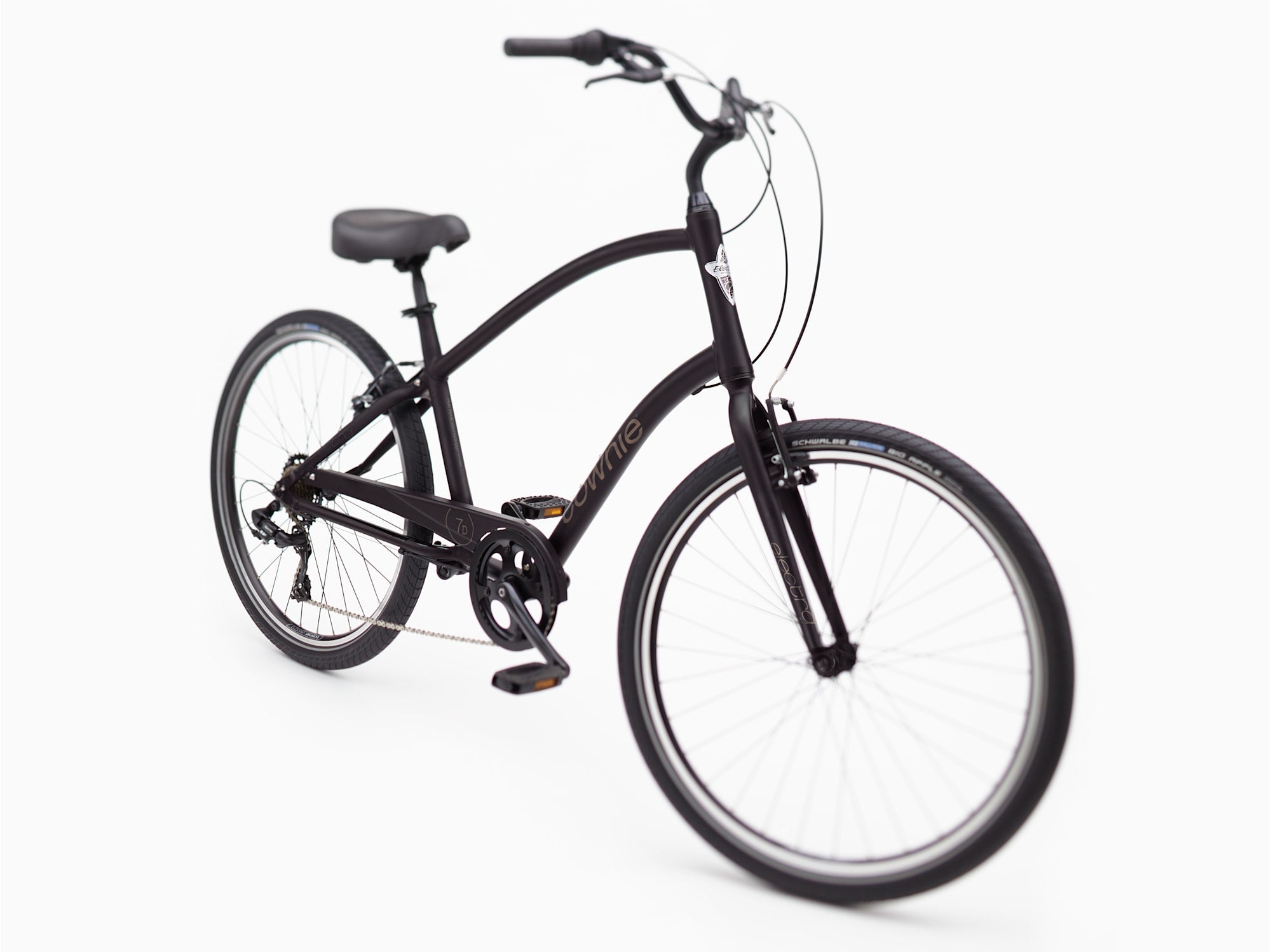

• Matte Black

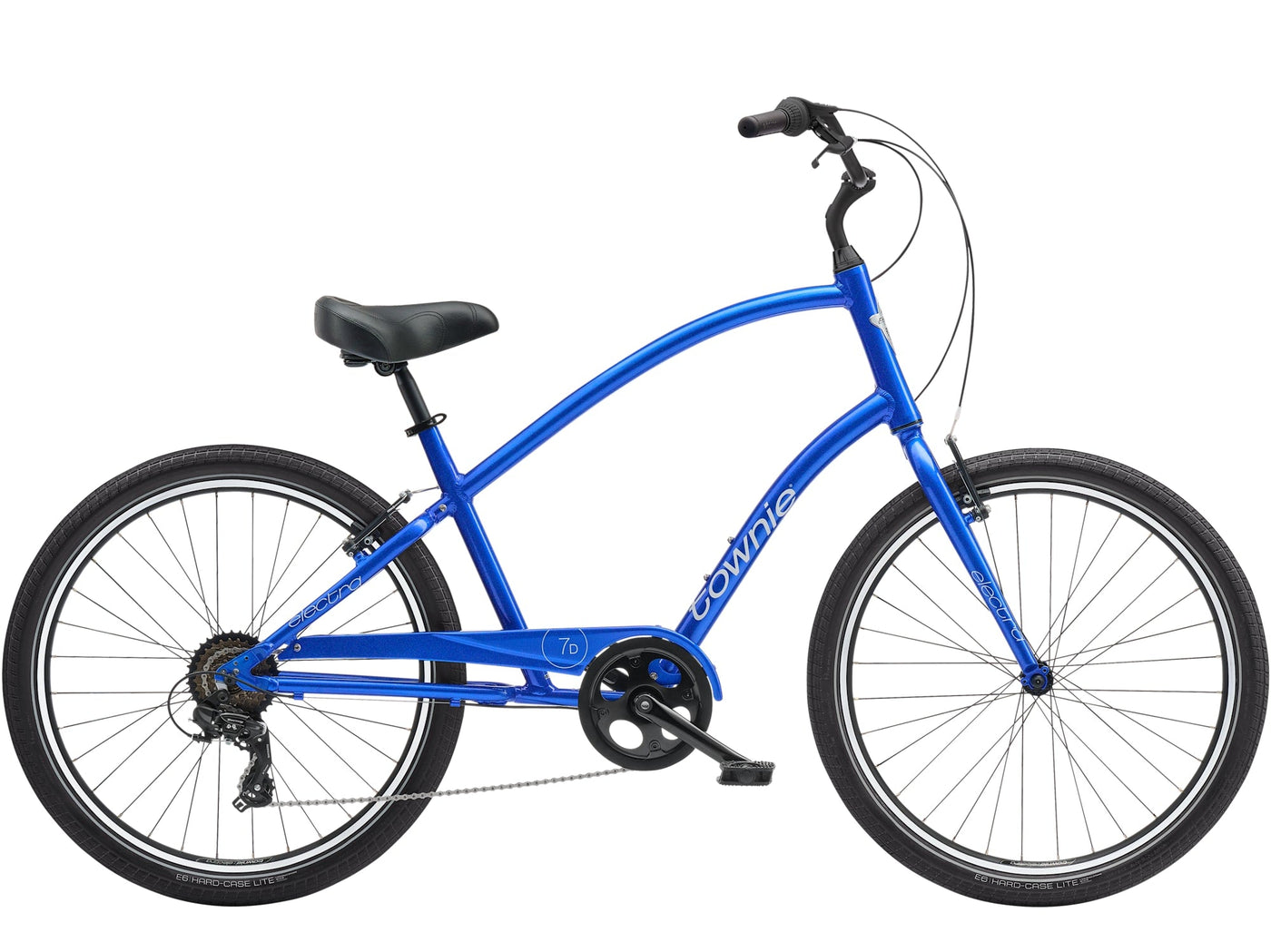

• Hyper Blue

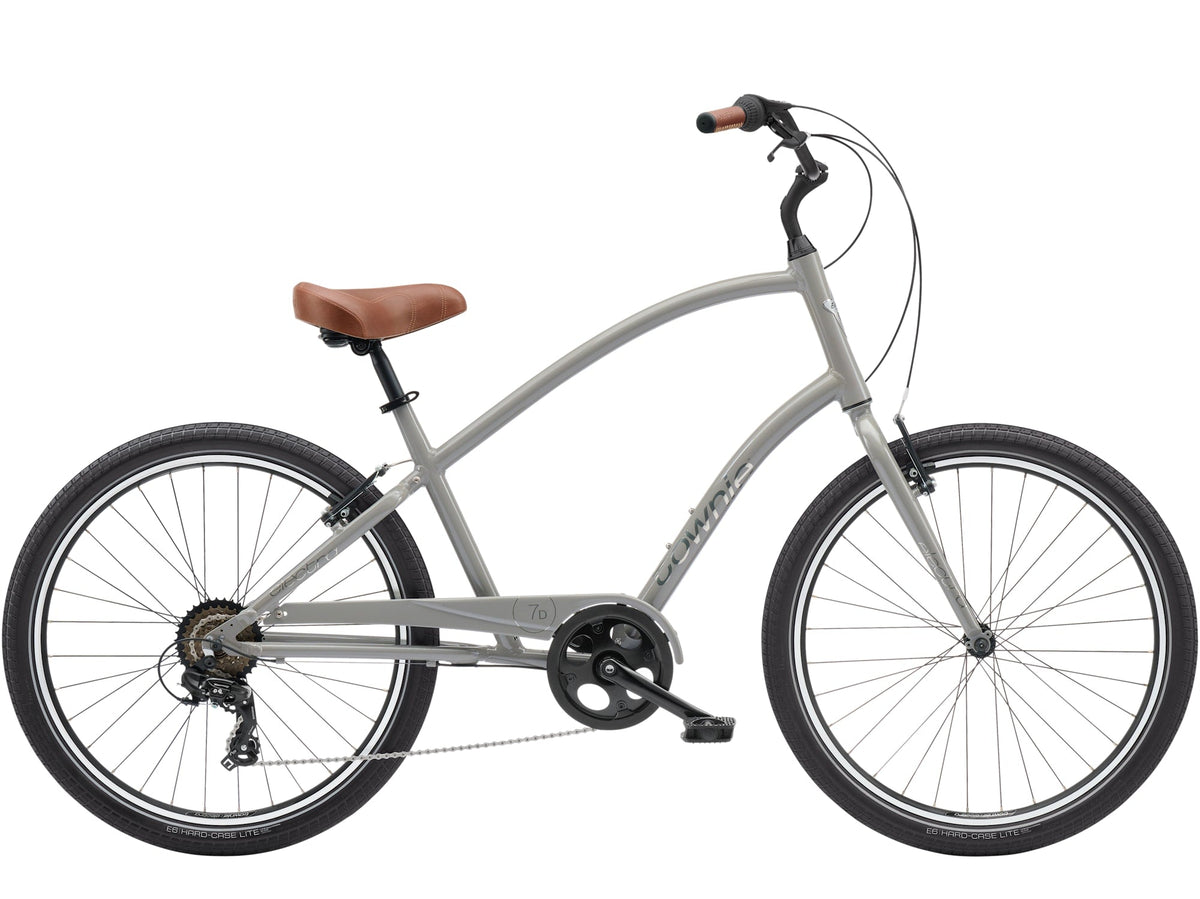

• Cement

• Nickel

• Oxford Blue

Geometry

Frame size number	Wheel size	A — Seat tube	B — Seat tube angle	C — Head tube length	D — Head angle	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack
26	26"	51.5	67.0°	23.7	69.0°	117.5	73.5	29.7	61.9
26 Tall	26"	56.4	67.0°	27.0	69.0°	119.9	77.3	30.9	65.0
