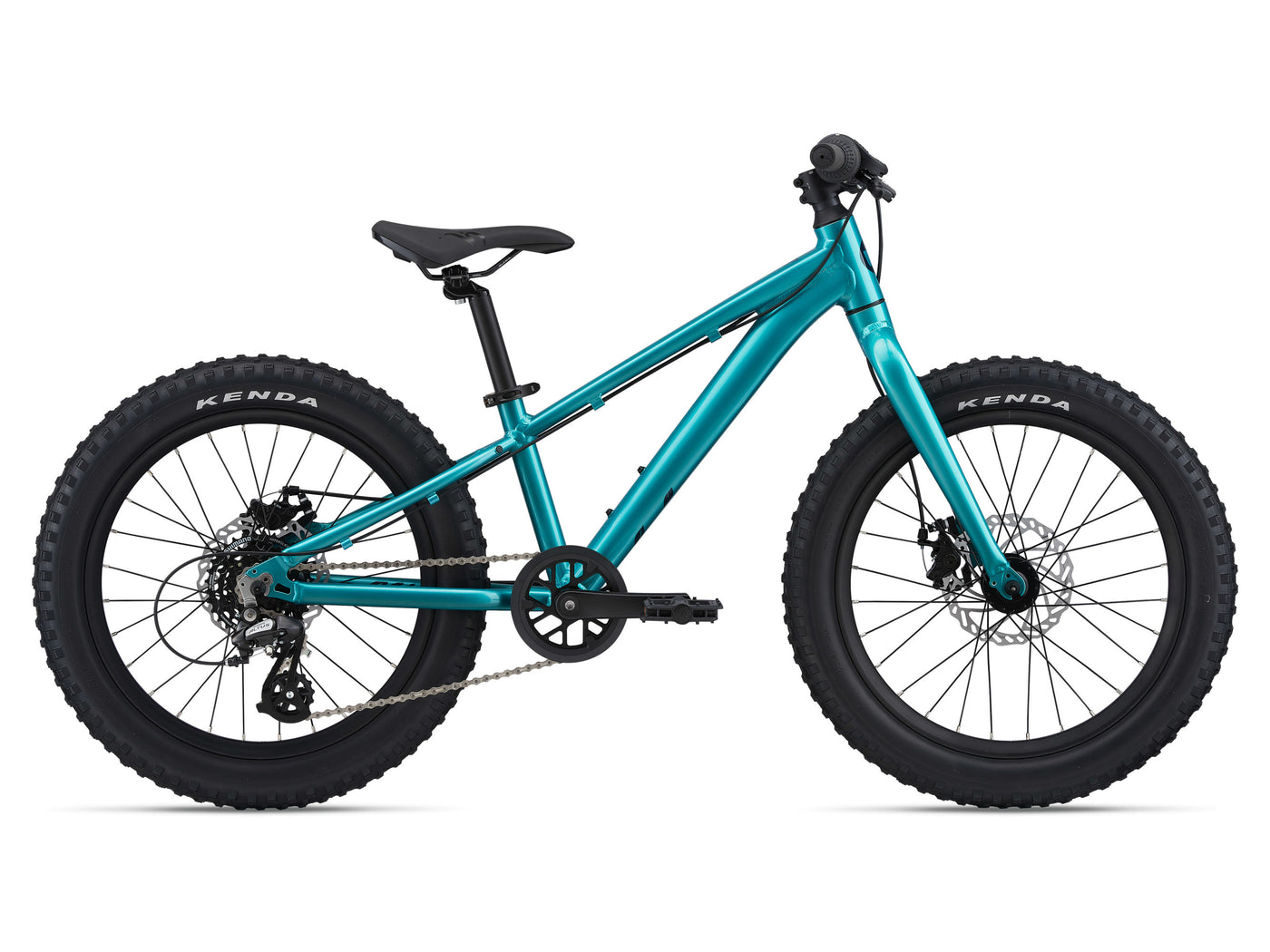

Liv STP 20 - Teal / 20 inch
$515.00
Designed for young riders looking to try out the dirt or pumptrack, this all-new shredder is built on a lightweight, super-strong aluminum frame with quick, responsive 20-inch wheels.
Versatile
Built with a lightweight, strong and durable ALUXX-Grade Aluminum frameset, the bike cruises the pump tracks, trails, and streets with ease.
Quick and Responsive
The frame geometry is designed for 20-inch wheels and a low saddle height, with a taller front end for a responsive, confident ride quality.
Maximum Control
Powerful disc brakes and a 60 mm suspension fork (available on select models) with a lockout option gives her safe and confidence-inspiring control.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- One Size
-
3’9”
4’3”
| One Size | |
|---|---|
| A Seat Tube Length (mm) | 260 |
| B Seat Tube Angle | 73.0° |
| C Top Tube Length (mm) | 450 |
| D Head Tube Length (mm) | 105 |
| E Head Tube Angle | 69.0° |
| F Fork Rake (mm) | 42 |
| G Trail (mm) | 59.8 |
| H Wheelbase (mm) | 887 |
| I Chain Stay Length (mm) | 365 |
| J Bottom Bracket Drop (mm) | 20 |
| K Stack (mm) | 448 |
| L Reach (mm) | 313 |
| N Handlebar Width (mm) | 600 |
| O Stem Length (mm) | 50 |
| P Crank Length (mm) | 127 |
| Q Wheel Size | 20" |
