With its flat handlebar, comfortable upright positioning and smooth, powerful disc brakes, Roam combines the best qualities of a road bike and a mountain bike. Now you can follow your own route wherever it goes.
Key Performance Factors
Agility and control

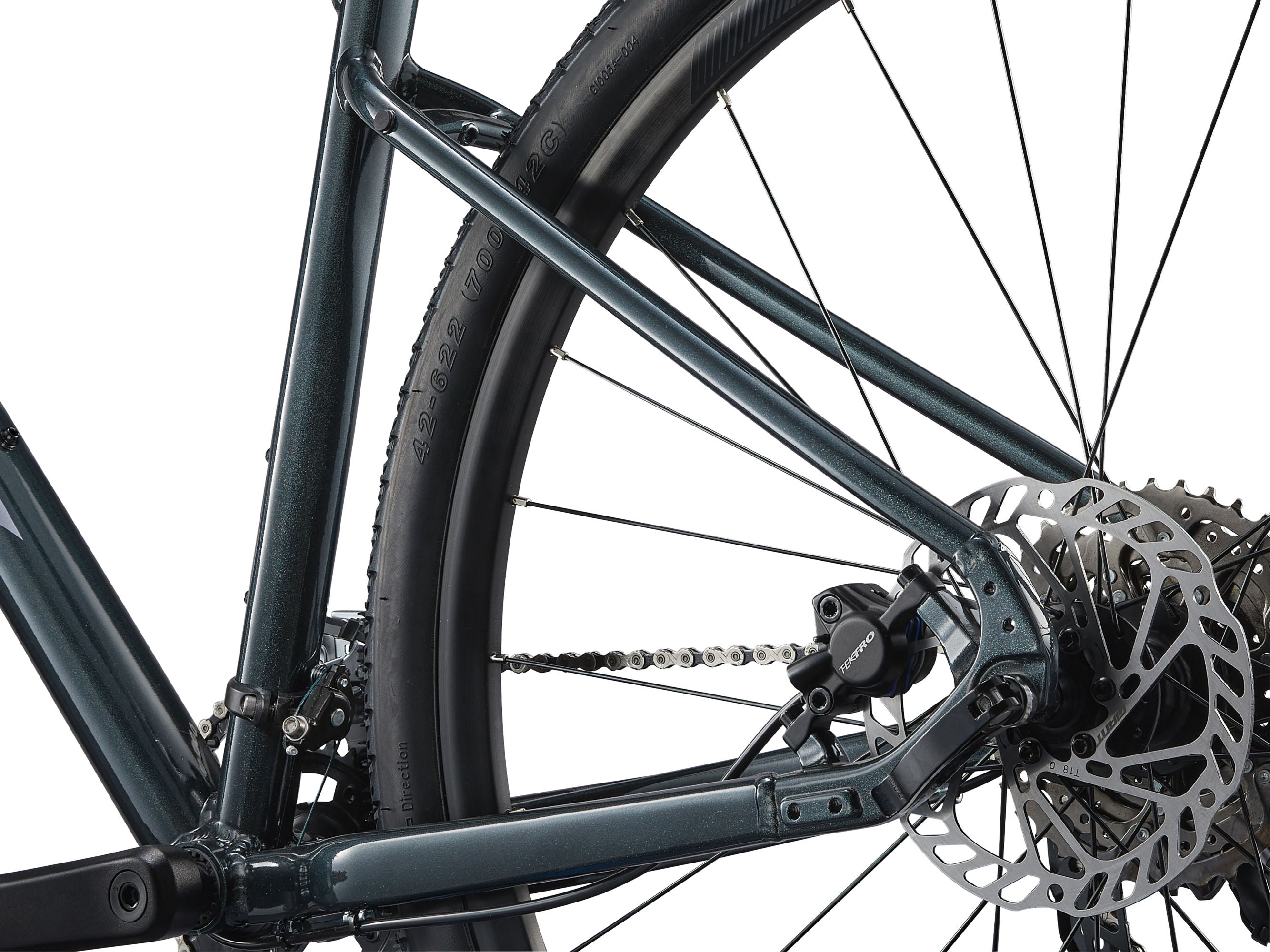

Updated flat-bar frame geometry puts the rider in a position that balances efficiency with stability, and disc brakes give you added control on rugged roads or dirt.
Smooth-riding comfort

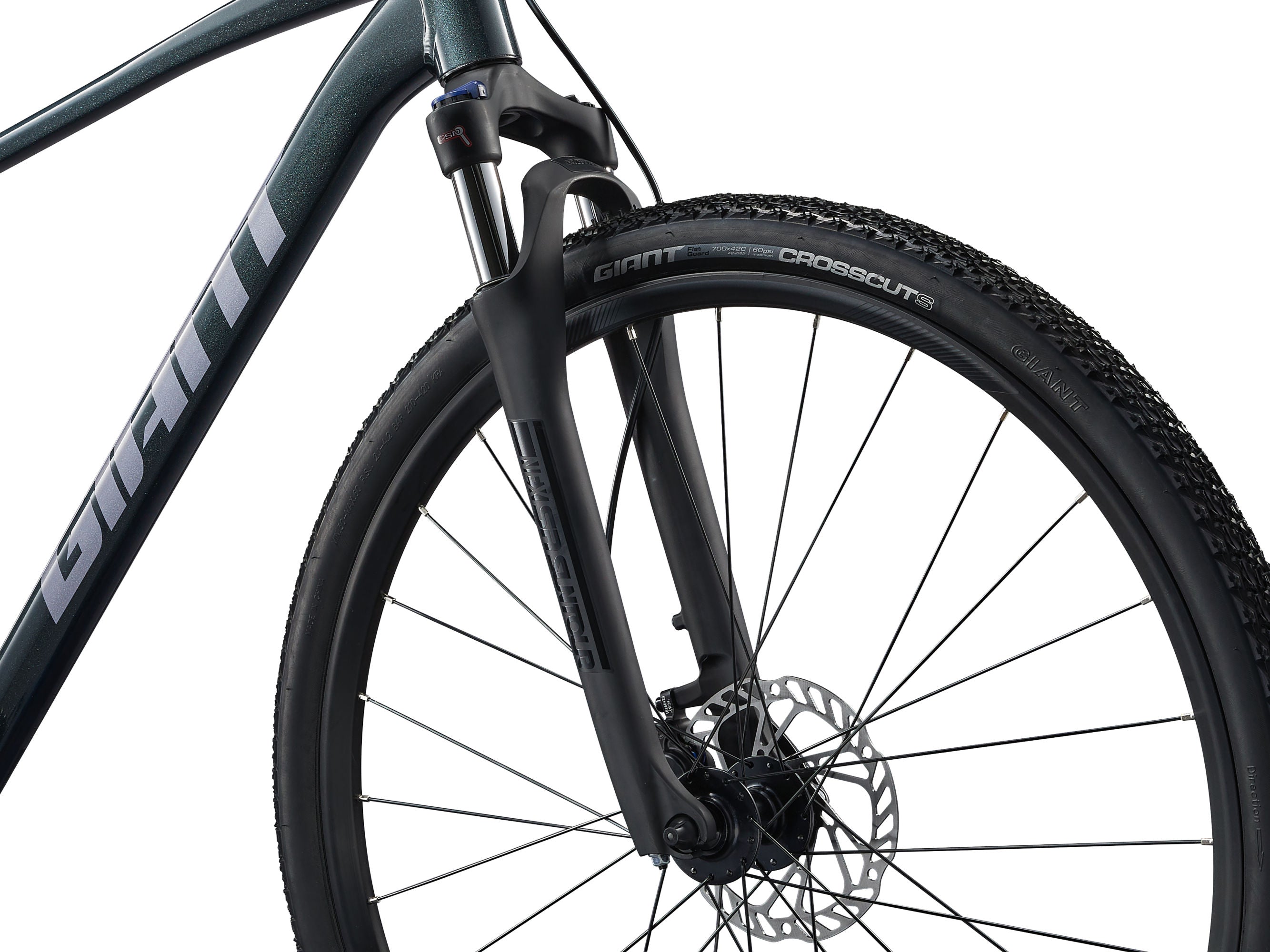

The D-Fuse seatpost and suspension fork absorb road shocks and vibrations.
Integrated rack mounts
Compatible with rear racks, allowing easy cargo capacity for daily trips or longer treks.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| |
S |
M |
L |
XL |
|
A Seat Tube Length (inch)
|
16.5 |
18.1 |
19.7 |
21.7 |
|
B Seat Tube Angle |
73.0° |
73.0° |
73.0° |
73.0° |
|
C Top Tube Length (inch)
|
23.2 |
23.6 |
24 |
24.6 |
|
D Head Tube Length (inch)
|
4.5 |
5.1 |
5.7 |
6.3 |
|
E Head Tube Angle |
70.5° |
70.5° |
70.5° |
70.5° |
|
F Fork Rake (inch)
|
1.7 |
1.7 |
1.7 |
1.7 |
|
G Trail (inch)
|
3.3 |
3.3 |
3.3 |
3.3 |
|
H Wheelbase (inch)
|
42.8 |
43.2 |
43.7 |
44.3 |
|
I Chain Stay Length (inch)
|
17.7 |
17.7 |
17.7 |
17.7 |
|
J Bottom Bracket Drop (inch)
|
2.4 |
2.4 |
2.4 |
2.4 |
|
K Stack (inch)
|
23.9 |
24.4 |
25 |
25.5 |
|
L Reach (inch)
|
15.9 |
16.1 |
16.4 |
16.8 |
|
M Stand Over Height (inch)
|
28.5 |
29.8 |
31 |
32.6 |
|
N Handlebar Width (inch)
|
25.2 |
26.8 |
26.8 |
26.8 |
|
O Stem Length (inch)
|
2.8 |
3.1 |
3.5 |
3.9 |
|
P Crank Length (inch)
|
6.7 |
6.7 |
6.9 |
6.9 |
|
Q Wheel Size
|
700C |
700C |
700C |
700C |
